License Plate Lamp: Service and Repair

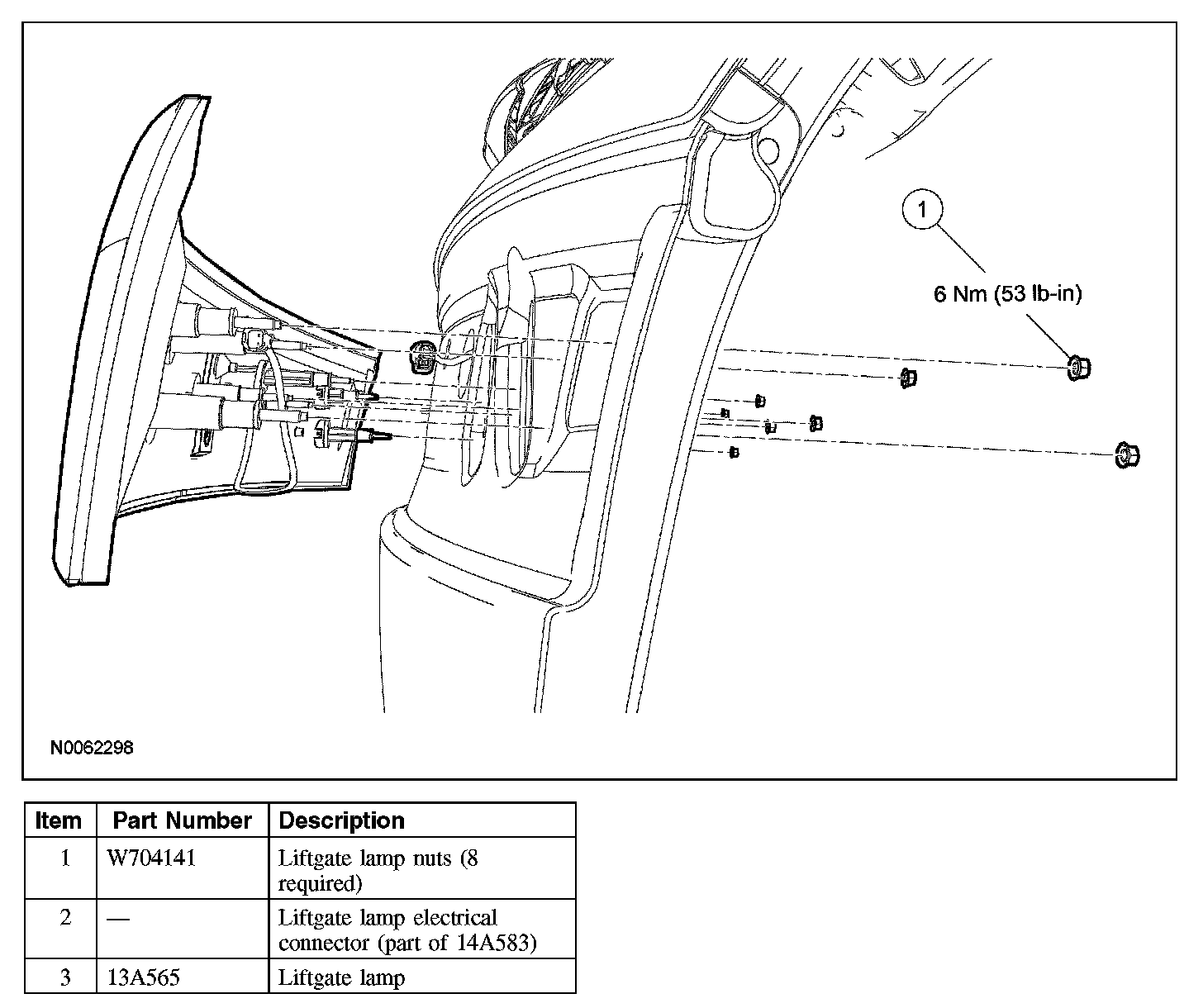

REAR LAMP ASSEMBLY - LIFTGATE







Removal and Installation
1. Remove the luggage trim panel.
2. Disconnect the liftgate lamp electrical connector.
3. Remove the 8 nuts and the liftgate lamp.
- To install, tighten to 6 Nm (53 lb-in).

4. To install, reverse the removal procedure.
