Brake Booster: Notes

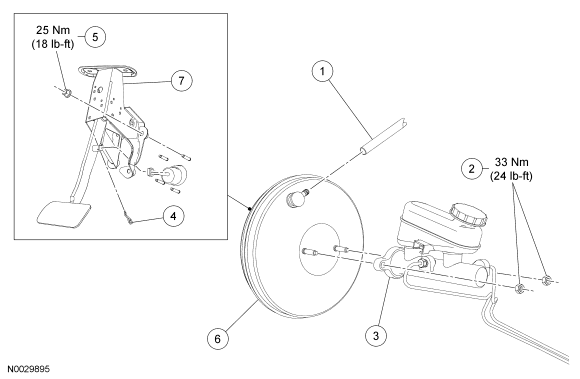

Fig 1: Brake Booster Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake booster hose
2	-	Brake master cylinder nuts (2 required)
3	2140	Brake master cylinder
4	-	Retaining clip
5	-	Brake pedal bracket nuts (4 required)
6	2005	Brake booster
7	-	Brake pedal bracket
