Brake Booster: Notes

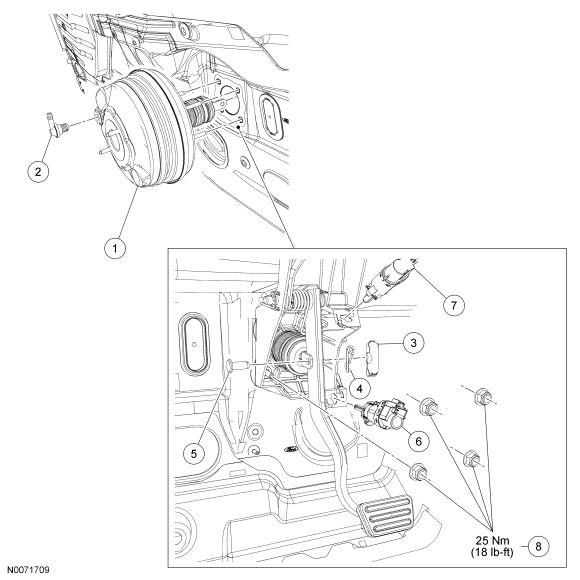

Fig 1: Brake Booster Replacement Components With Torque Specifications
GF0000896Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2B195 Brake booster
2 2365 Brake booster vacuum check valve
3 2475 Redundant self-locking clip cover
4 380699 Self-locking clip
5 2N513 Brake booster rod pin
6 13480 Stop lamp switch
7 9C872 Speed deactivation switch
8 W520112 Brake booster nuts (4 required)
