Brake Pressure Control Valve: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

NOTE: Non anti-lock brake system (ABS) shown, ABS similar.

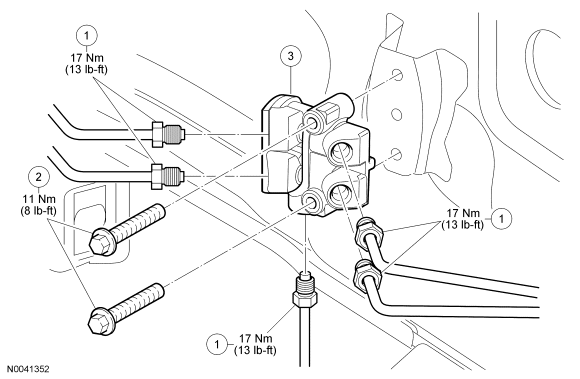

Fig 1: Exploded View Of Brake Pressure Control Valve With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake tube fittings
2	W711239	Brake pressure control valve bolts (2 required)
3	43900	Brake pressure control valve
