Brake Pedal and Bracket: Notes

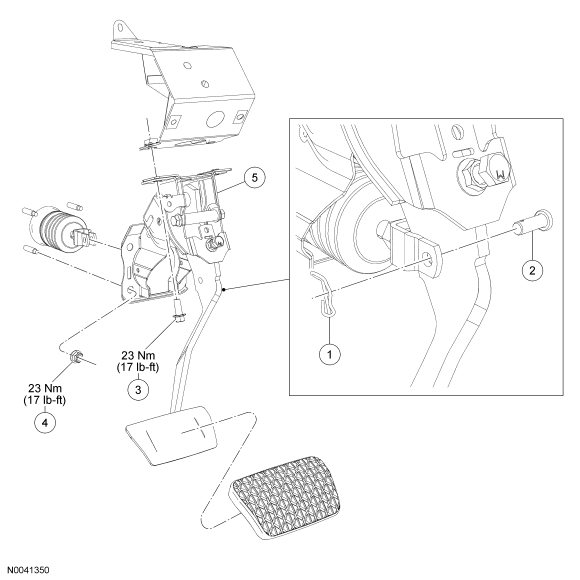

Fig 1: Exploded View Of Brake Pedal & Bracket With Torque Specifications
GF0029600Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7B096 Brake booster push rod pin clip
2 2N513 Brake booster push rod pin
3 W707142 Brake pedal bracket bolt (2 required)
4 W520212 Brake pedal bracket nut (4 required)
5 2455 Brake pedal and bracket
