Brake Master Cylinder - 2.3L and 3.0L: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

NOTE: Automatic transmission shown, manual transmission similar.

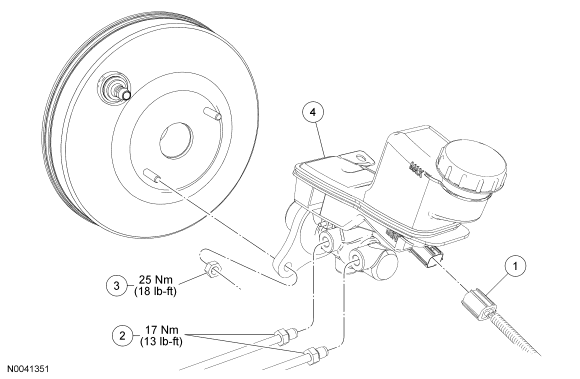

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications - 2.3L & 3.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake fluid level warning switch electrical connector
2	2C360	Brake tube fittings
3	-	Brake master cylinder nut (2 required)
4	2B195	Brake master cylinder assembly
