Axle Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

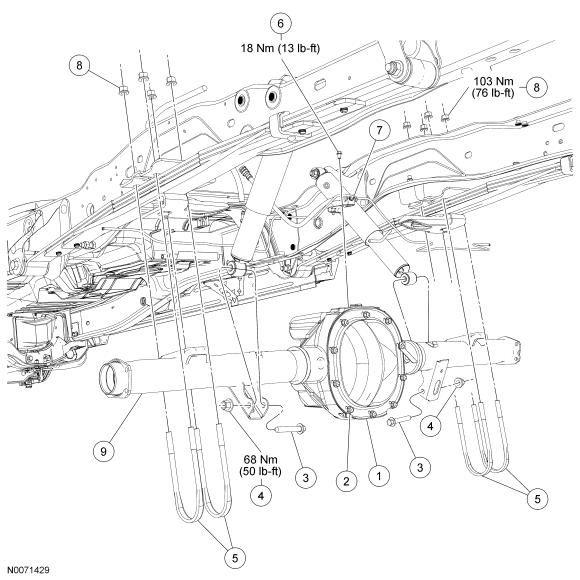

| Item | Part Number | Description |
|---|---|---|
| 1 | 4033 | Differential housing cover |
| 2 | 4346 | Differential housing cover bolt (10 required) |
| 3 | W506545 | Lower shock absorber bolts (2 required) |
| 4 | W520214 | Lower shock absorber nuts (2 required) |
| 5 | W708550 | U-bolts (4 required) |
| 6 | 57632 | Brake tube junction bolt |
| 7 | 305217 S | Brake tube junction |
| 8 | N52114 S | U-bolt nuts (8 required) |
| 9 | 4010 | Rear axle housing |
