Brake Pedal and Bracket - Adjustable
NOTE:

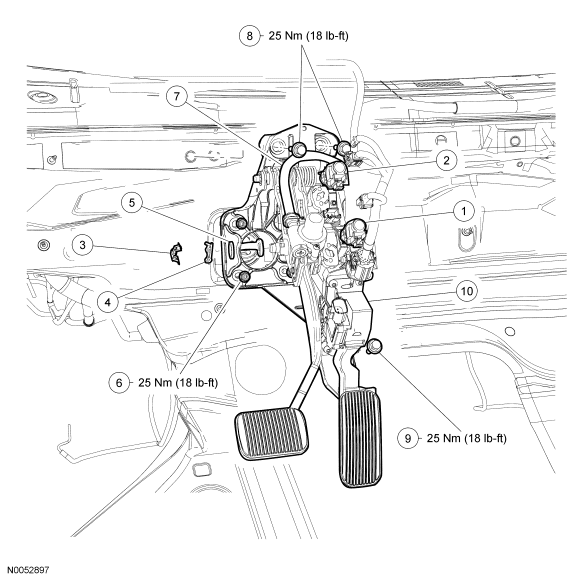

Adjustable pedal assembly shown, fixed pedal assembly similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Stoplamp switch |
| 2 | - | Speed control deactivation switch |
| 3 | 3757 | Redundant self-locking clip retainer |
| 4 | 380699 | Self-locking clip |
| 5 | 2B129 | Washer |
| 6 | W520112 | Brake booster nuts (4 required) |
| 7 | - | Drive cable assembly (part of 9F856) |
| 8 | W709633 | Brake pedal bracket bolts (2 required) |
| 9 | W709633 | Brake pedal bracket bolt |
| 10 | 9F856 | Brake pedal and bracket assembly |
- If equipped with adjustable pedals, make sure they are in the full forward position.
- Remove the steering column. For additional information, refer to STEERING COLUMN article.
- Disconnect the electrical connectors from the brake pedal assembly.
- Remove the stoplamp switch.
- If equipped, remove the speed control deactivator switch.
- Remove the redundant self-locking clip retainer and the self-locking clip.
- Remove the booster rod and washer from the brake pedal.
- Remove the 4 brake booster nuts.
- To install, tighten to 25 Nm (18 lb-ft).
- Position the brake booster forward enough to allow the brake booster studs to clear the brake pedal assembly.
- Remove the lower brake pedal bracket bolt, under the accelerator pedal, from the brake pedal bracket assembly.
- To install, tighten to 25 Nm (18 lb-ft).
- Remove the upper 2 brake pedal bracket bolts from the brake pedal bracket assembly.
- To install, tighten to 25 Nm (18 lb-ft).
- Disconnect the vehicle electrical harness locators and remove the brake pedal bracket assembly from the vehicle.
- To install, reverse the removal procedure.
CAUTION:
The brake pedal must be connected to the brake booster rod and in the AT-REST position before removing or installing this switch or damage to the switch will occur.
CAUTION:
The brake pedal must be connected to the brake booster rod and in the AT-REST position before removing or installing this switch or damage to the switch will occur.
