Brake Master Cylinder: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

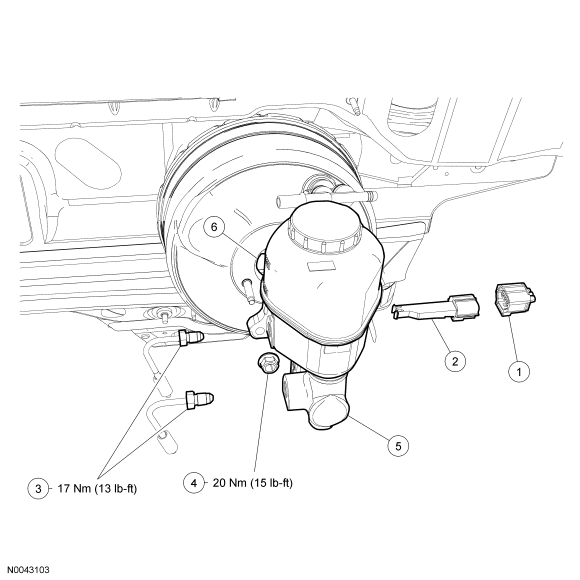

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications

GF0017389

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake fluid level indicator switch electrical connector
2	2L414	Brake fluid level indicator switch
3	-	Brake tube fittings
4	W520112	Brake master cylinder nut (2 required)
5	2140	Brake master cylinder
6	2L364	Brake master cylinder-to-booster seal
