Seat Cushion Heater Connectors

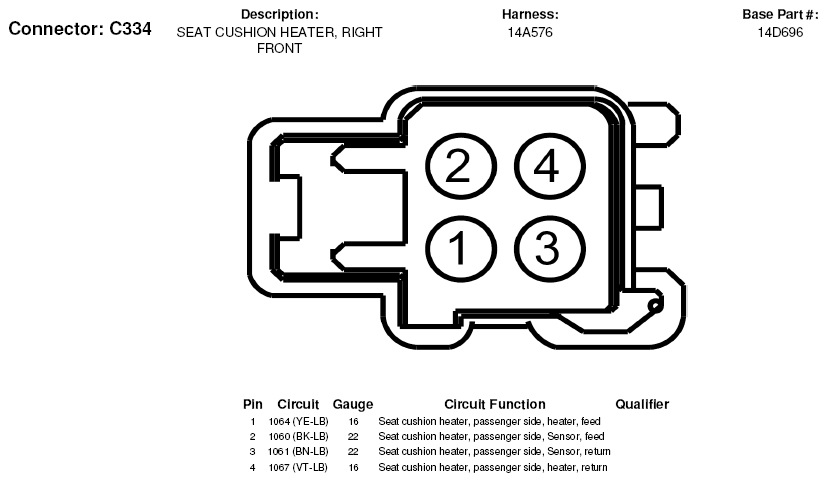

Fig 1: Seat Cushion Heater Connector End View (C334)

G05181542

Courtesy of FORD MOTOR CO.

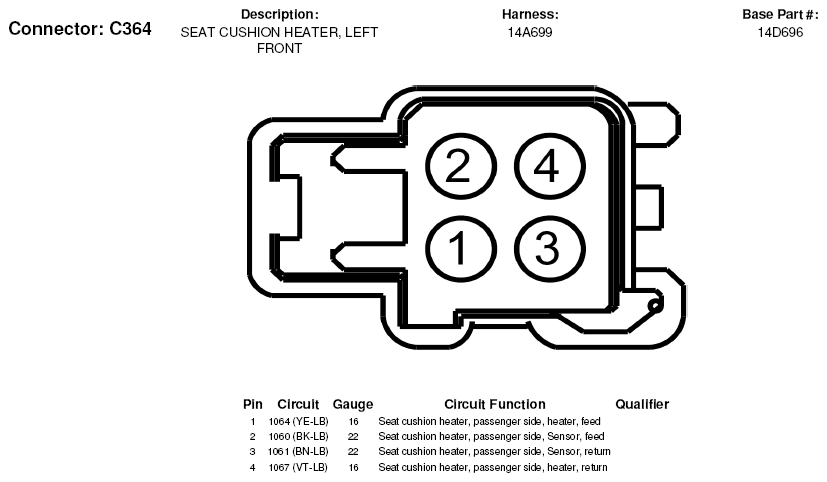

Fig 2: Seat Cushion Heater Connector End View (C364)

G05181554

Courtesy of FORD MOTOR CO.
