Evaporative Emission Canister Vent Connector

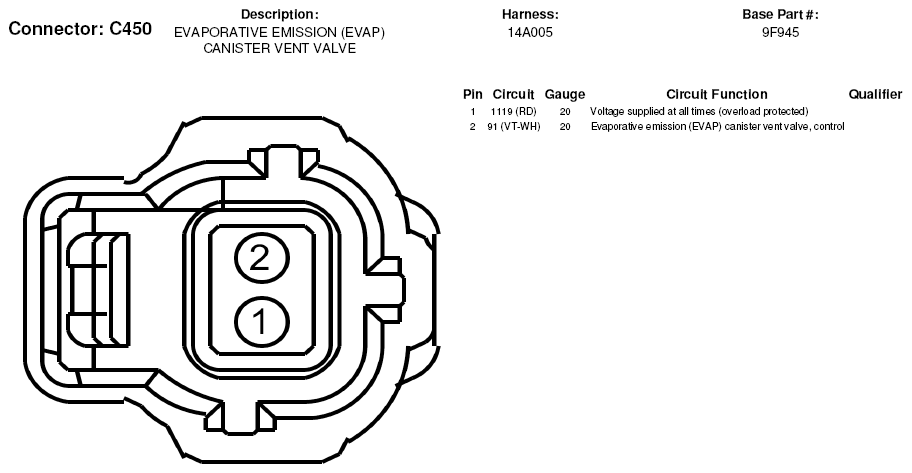

Fig 1: Evaporative Emission Canister Vent Connector End View (C450)

G05181581

Courtesy of FORD MOTOR CO.
