Brake Fluid Reservoir: Notes
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |

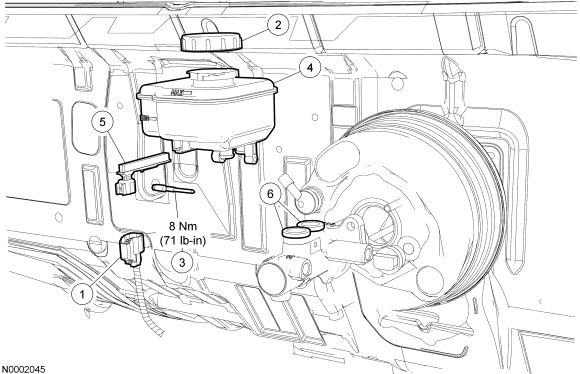

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level switch electrical connector (part of 14289) |
| 2 | 2162 | Brake fluid reservoir cap |
| 3 | - | Brake fluid reservoir retaining pin (part of 2140) |
| 4 | 2K478 | Brake fluid reservoir |
| 5 | 2L414 | Brake fluid reservoir level switch |
| 6 | 2L074 | Brake fluid reservoir seals (2 required) |
