Headlamp Switch: Service and Repair

HEADLAMP SWITCH












Removal and Installation

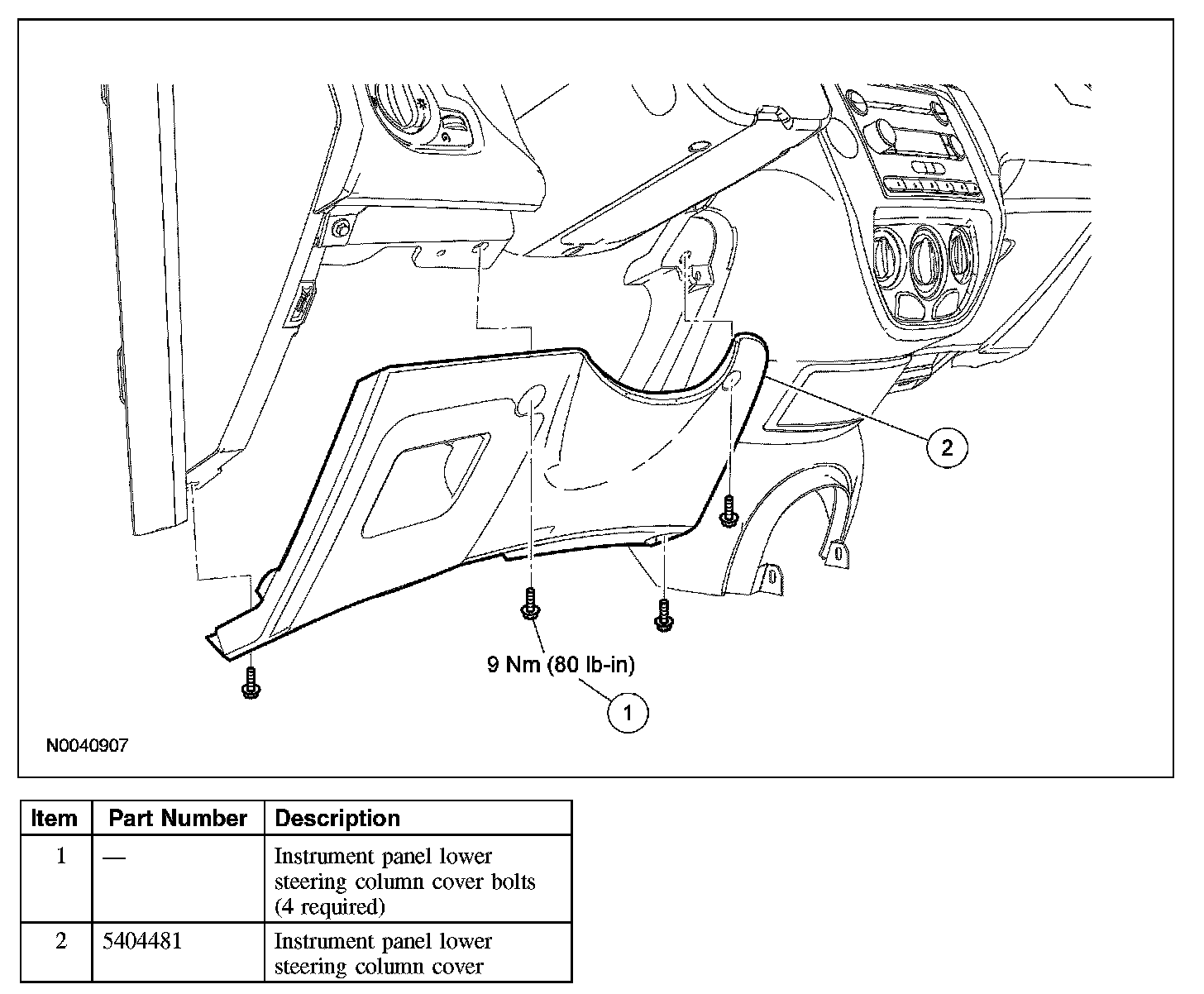

1. Remove the 4 bolts and the instrument panel lower steering column cover.
- To install, tighten to 9 Nm (80 lb-in).

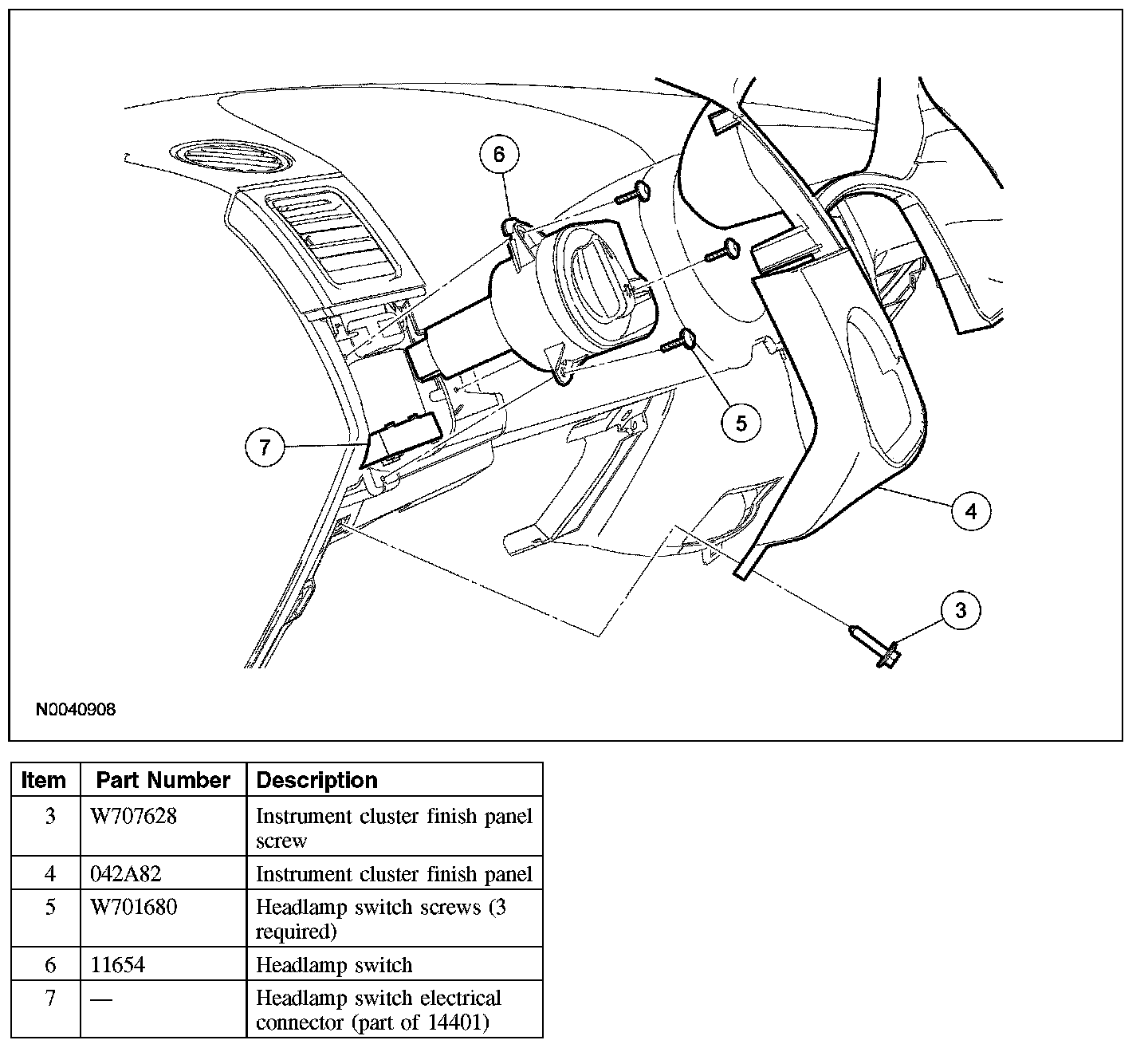

2. Remove the screw and the instrument cluster finish panel.
3. Remove the 3 screws and the headlamp switch.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
