Home >> Ford >> 2007 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Locations

Headlamp Switch: Locations

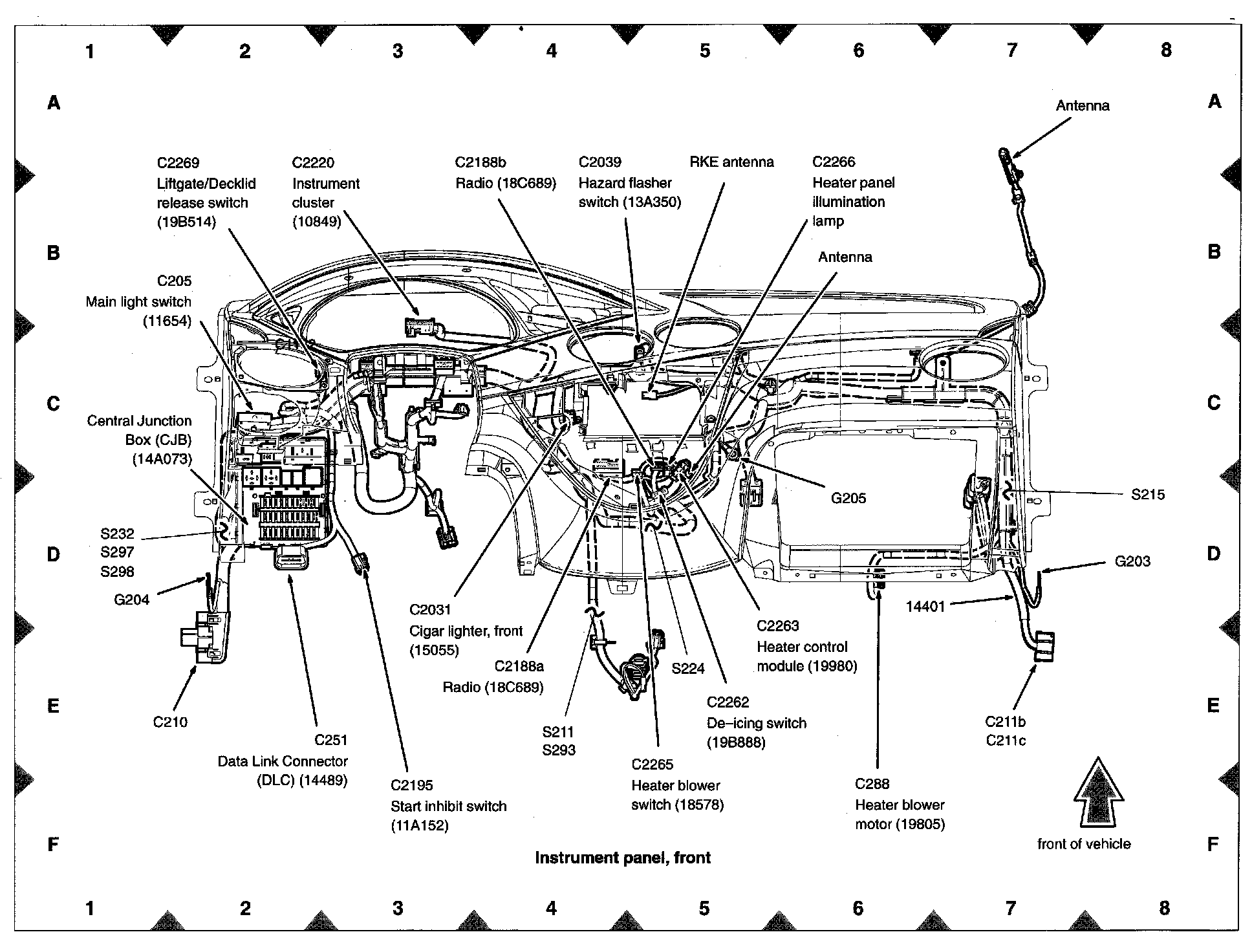

View 151-10 (Instrument panel, front):
