Brake Pedal and Bracket: Notes

NOTE: Adjustable pedals shown, fixed pedals similar.

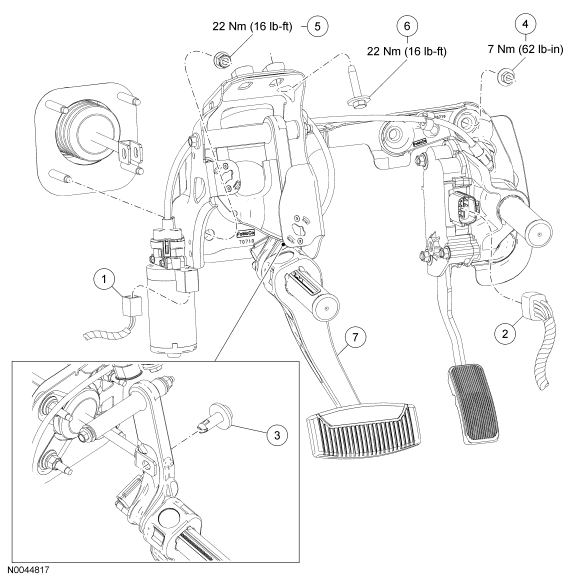

Fig 1: Exploded View Of Brake Pedal & Bracket With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Adjustable pedal motor electrical connector
2	-	Accelerator pedal electrical connector
3	-	Booster push rod clevis locking pin
4	90907	Accelerator pedal bracket nut (3 required)
5	W520212	Brake pedal bracket nut (4 required)
6	W710343	Brake pedal bracket bolt (2 required)
7	2450/ 9F856	Brake pedal bracket (fixed/adjustable)
