Brake Master Cylinder: Notes
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |

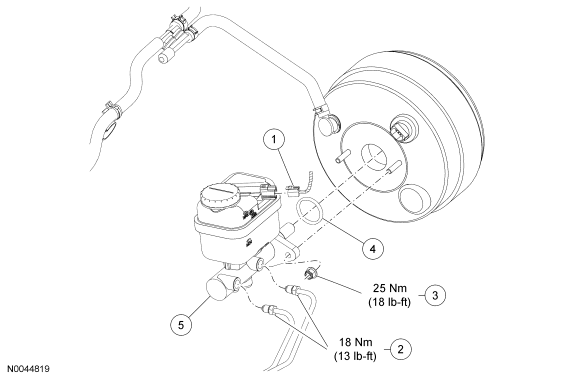

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level warning switch electrical connector (part of 14289) |
| 2 | - | Brake tube fittings (2 required) |
| 3 | W520212 | Brake master cylinder nut (2 required) |
| 4 | - | Brake master cylinder-to-booster square cut seal (part of 2004) |
| 5 | 2004 | Brake master cylinder/reservoir assembly |
