Brake Booster: Notes

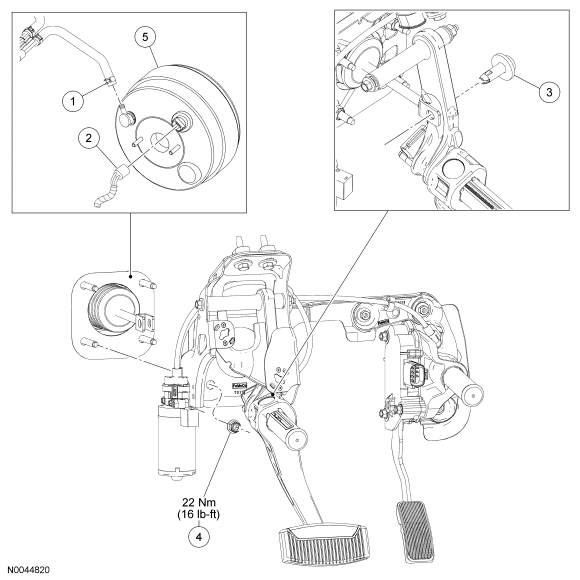

Fig 1: Exploded View Of Brake Booster With Torque Specifications
GF0027302Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9C482 Brake booster vacuum hose
2 - Brake booster solenoid and microswitch electrical connector (part of 14289)
3 - Brake booster push rod clevis locking pin
4 W520212 Brake booster nut (4 required)
5 2005 Brake booster assembly
