Axle Shaft: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the O-ring seal with lubricant prior to installation of axle shaft.

Install the axle shaft.

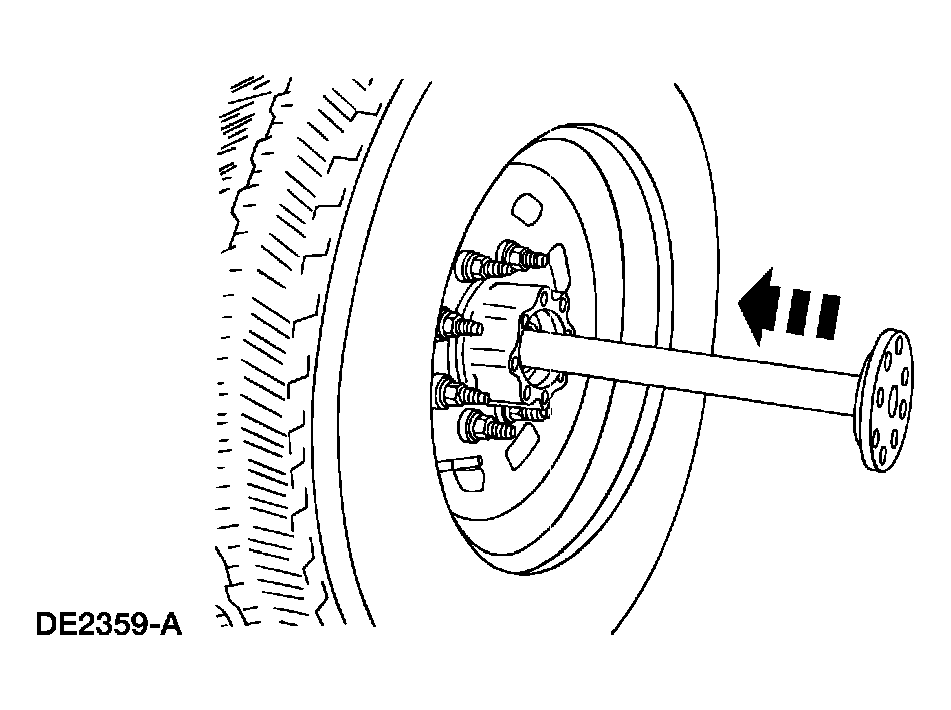

Fig 1: Installing Axle Shaft
Courtesy of FORD MOTOR CO.

NOTE: Coat the threads of the retaining bolts with Stud and Bearing Mount.

Fig 2: Tightening Axle Shaft Retaining Bolts

Courtesy of FORD MOTOR CO.

Install the retaining bolts and tighten.
