Wheel Studs - Single Rear Wheel: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
    2. CAUTION: Do not allow the caliper assembly to hang from the brake hose or damage to the hose can occur.
  2. Remove the 2 caliper anchor plate bolts and position the caliper assembly aside.
    • Support the caliper assembly using mechanic's wire.
  3. Index-mark and remove the brake disc.
    Fig 1: Indexing Brake Disc
    G03917846Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove and discard the wheel stud.

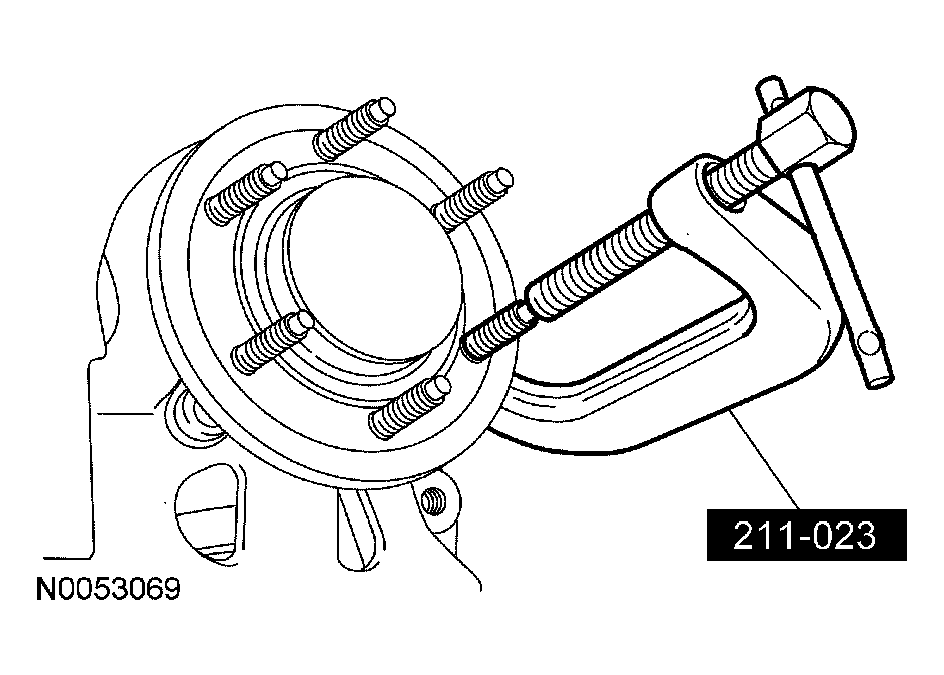

    Fig 2: Removing Wheel Stud
    G03917847Courtesy of FORD MOTOR CO.
