Wheel Studs - Single Rear Wheel: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a new wheel stud, aligning the serrations in the wheel hub made by the original stud.
  2. Place 4 washers over the outside end of the wheel stud and thread a standard wheel nut with the flat side against the washers. Tighten the wheel nut until the wheel stud seats against the back side of the wheel extension.

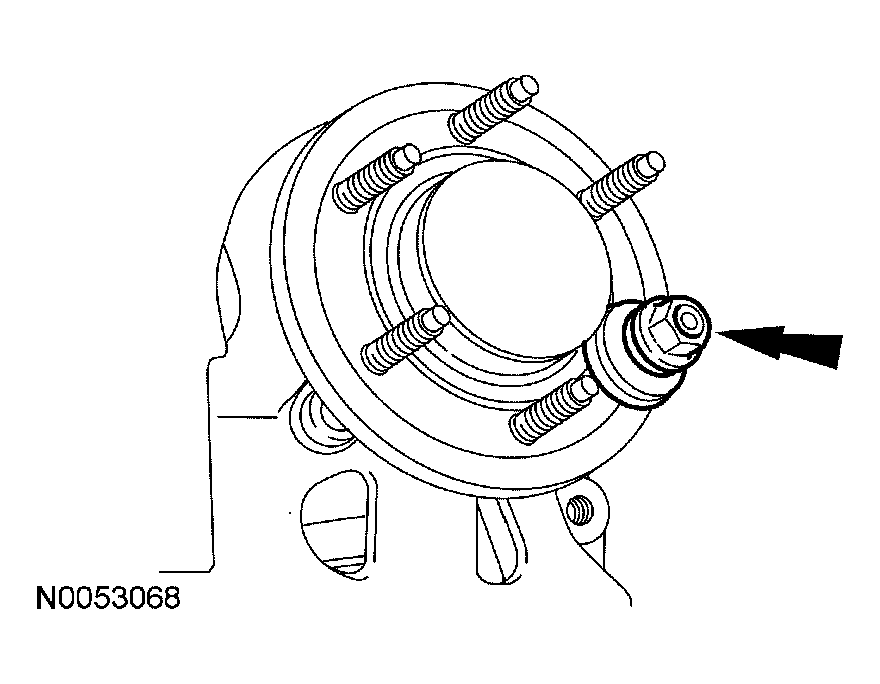

    Fig 1: Placing 4 Washers Over Outside End Of Wheel Stud
    G03917848Courtesy of FORD MOTOR CO.
  3. Remove the wheel nut and washers.
    4. NOTE: Be sure to align index marks made during the removal step.
  4. Install the brake disc.
  5. Position the brake caliper and anchor plate assembly and install the 2 anchor plate bolts.
    • Tighten to 225 Nm (166 lb-ft).
