Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the stabilizer link-to-axle nut.
    Fig 1: Removing/Installing Stabilizer Link-To-Axle Nut
    G03917865Courtesy of FORD MOTOR CO.
  2. Remove the nut and bolt, and disconnect the stabilizer bar link from the stabilizer bar.

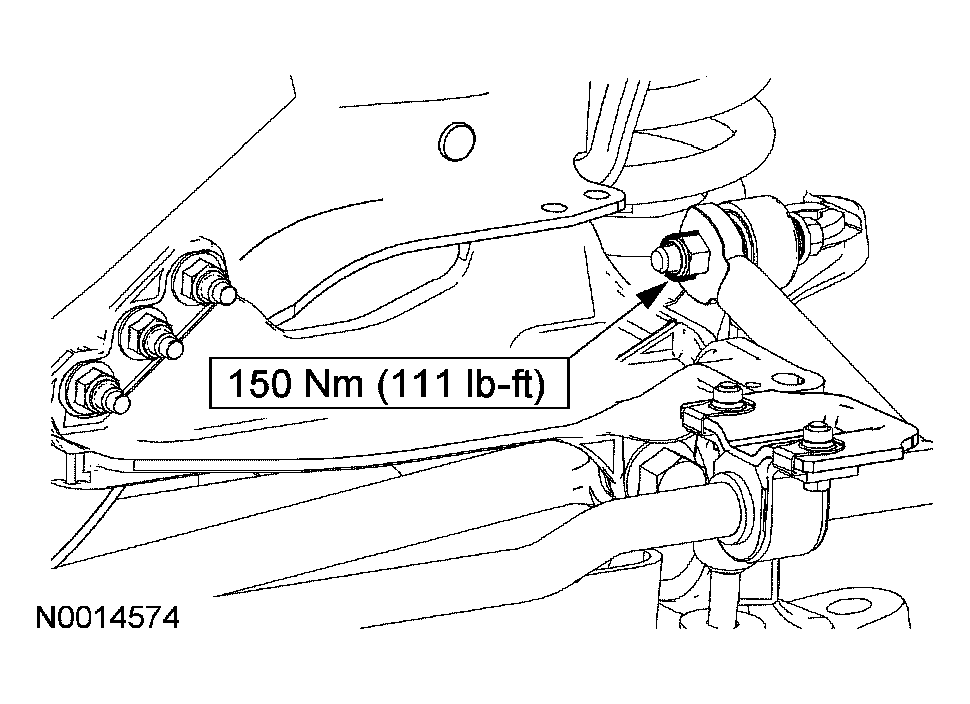

    Fig 2: Removing/Installing Stabilizer Bar Link Nut And Bolt
    G03917854Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
