Radius Arm Bushing: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools, install the bushing.

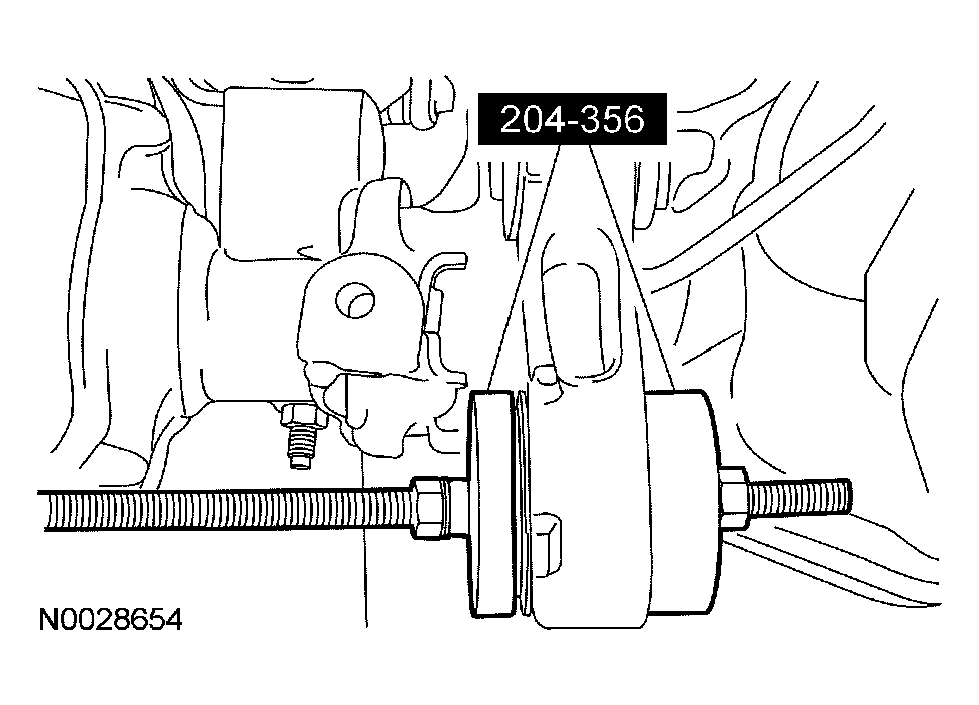

Fig 1: Installing Bushing
Courtesy of FORD MOTOR CO.

NOTE: Tighten the shock absorber bolt when the suspension is at curb height.

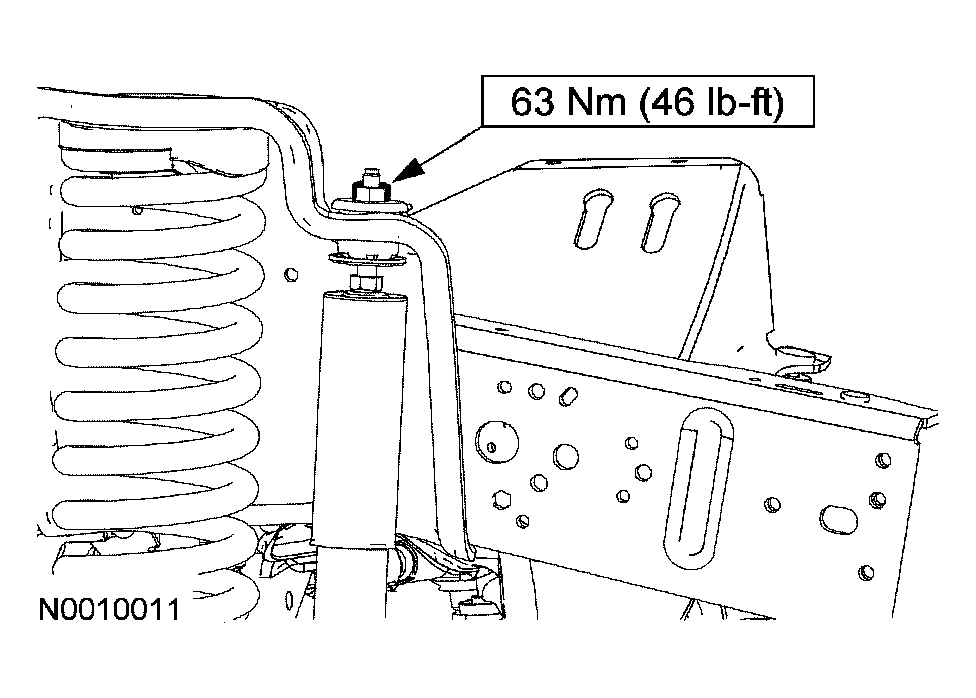

Fig 2: Positioning Shock Absorber And Installing Upper Nut

Courtesy of FORD MOTOR CO.

Position the shock absorber and install the upper nut.
Install the radius arm. For additional information, refer to RADIUS ARM .
