Ball Joint - Track Bar: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the track bar, for additional information, refer to TRACK BAR .
  3. If equipped, remove the ball joint grease fitting.

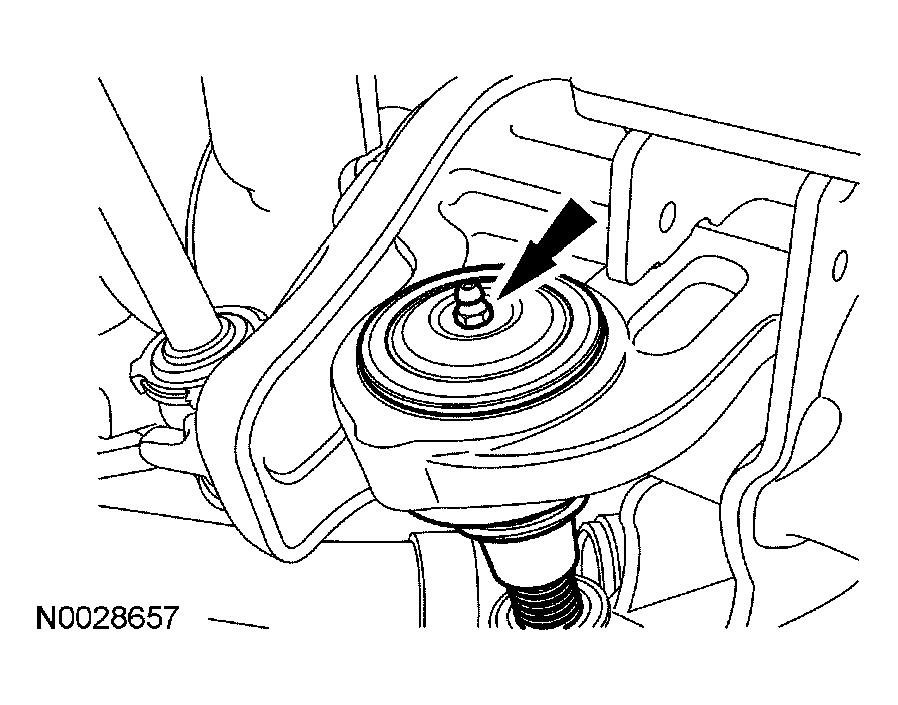

    Fig 1: Removing Ball Joint Grease Fitting
    G03917742Courtesy of FORD MOTOR CO.
  4. Remove the ball joint boot.
  5. Using the special tools, remove and discard the ball joint.

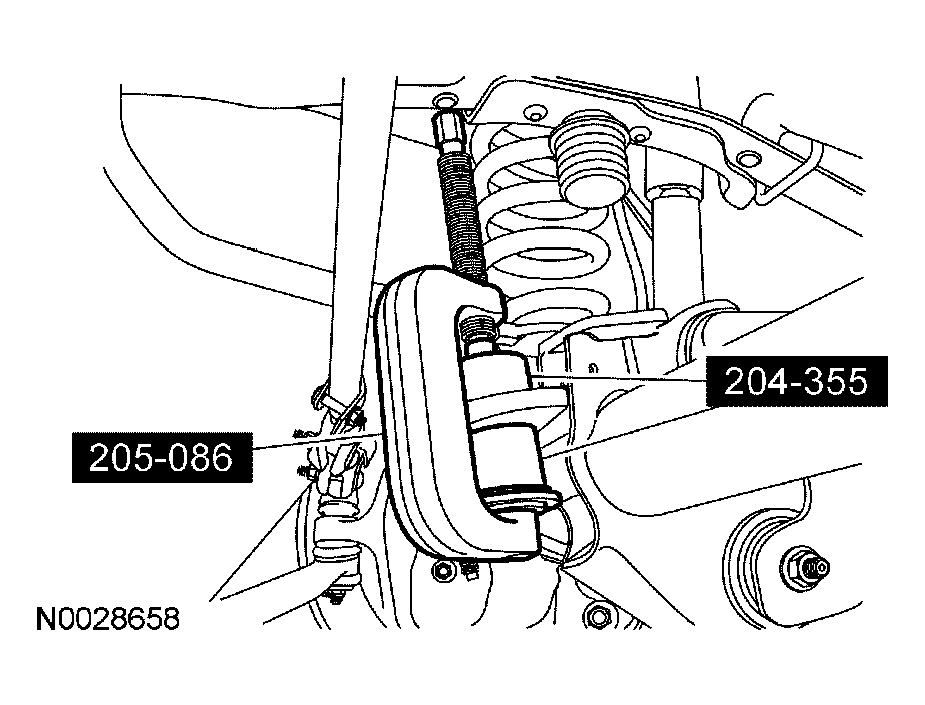

    Fig 2: Removing Ball Joint
    G03917743Courtesy of FORD MOTOR CO.
