Ball Joint - Track Bar: Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Position the new ball joint into the bracket.

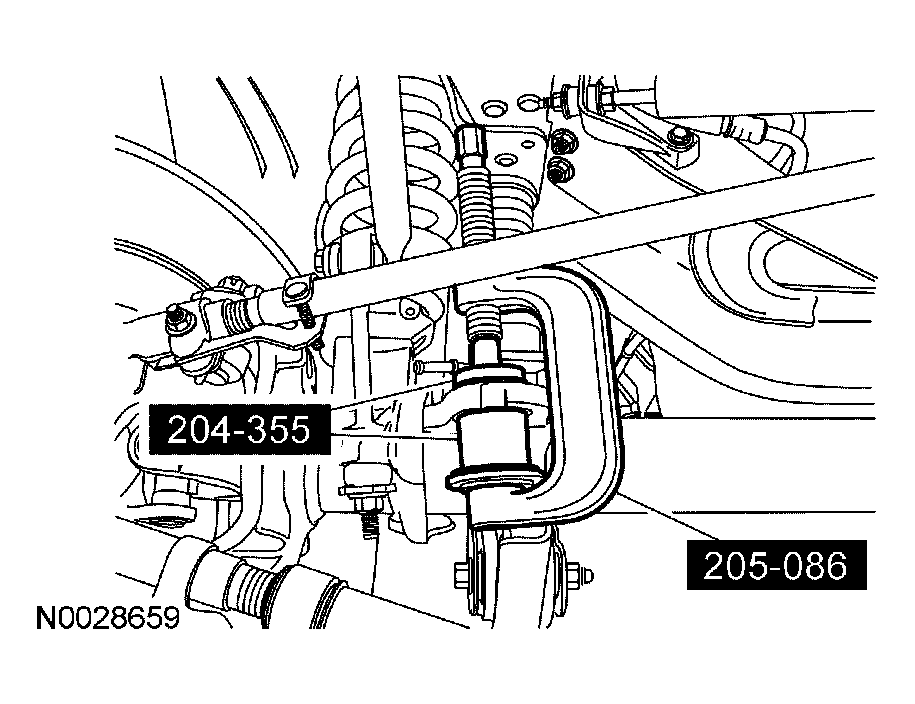

- Using the special tools, install the ball joint.
- If removed, install the ball joint grease fitting.
- Install the track bar. For additional information, refer to TRACK BAR .
CAUTION:
The grease fitting must be removed from the ball joint prior to installation or damage to the grease fitting can occur.
CAUTION:
The ball joint is installed with the dust boot attached to the ball joint. Do not damage the ball joint boot during installation.
