Wheel Studs - Single Rear Wheel: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, 2006 Ford Cab & Chassis, and 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04643160
 C-Frame and Clamp Assembly Tool
211-023 (T74P-3044-A1)

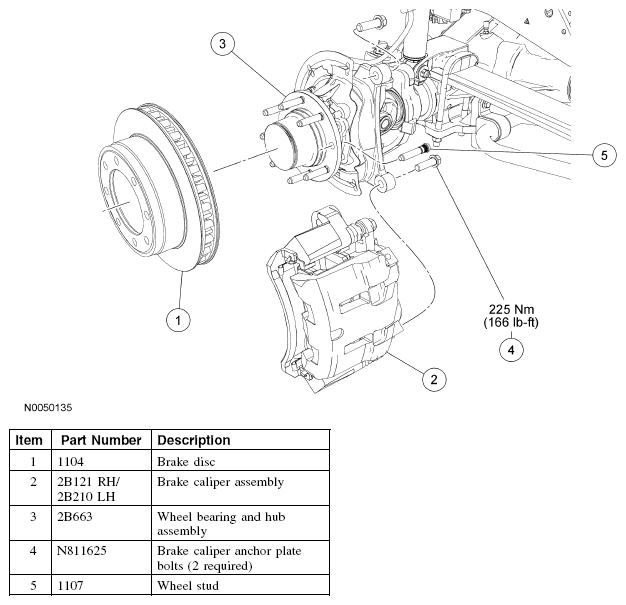

Fig 1: Wheel Studs -- Single Rear Wheel Replacement Components With Torque Specifications
G04643161Courtesy of FORD MOTOR CO.
