Wheel Bearing and Wheel Hub: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, 2006 Ford Cab & Chassis, and 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04643149
 73III Automotive Meter
105-R0057 or equivalent
G04643150
 Vacuum Pump Kit
416-D002 (D95L-7559-A) or equivalent
MATERIAL

Item Specification
High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A ESA-M1C198-A

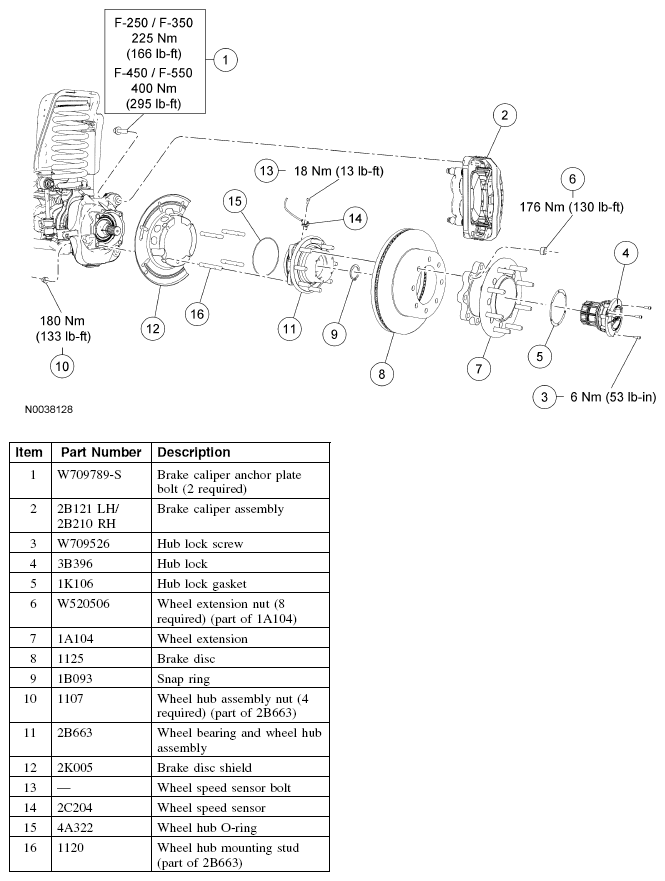

Fig 1: Wheel Bearing And Wheel Hub Assembly Replacement Components Torque Specification
G04643151Courtesy of FORD MOTOR CO.
