Test C: Turbine Shaft Speed (TSS) and Output Shaft Speed (OSS) Sensors
Test C: Turbine Shaft Speed (TSS) and Output Shaft Speed (OSS) Sensors
PINPOINT TEST C: TURBINE SHAFT SPEED (TSS) AND OUTPUT SHAFT SPEED (OSS) SENSORS

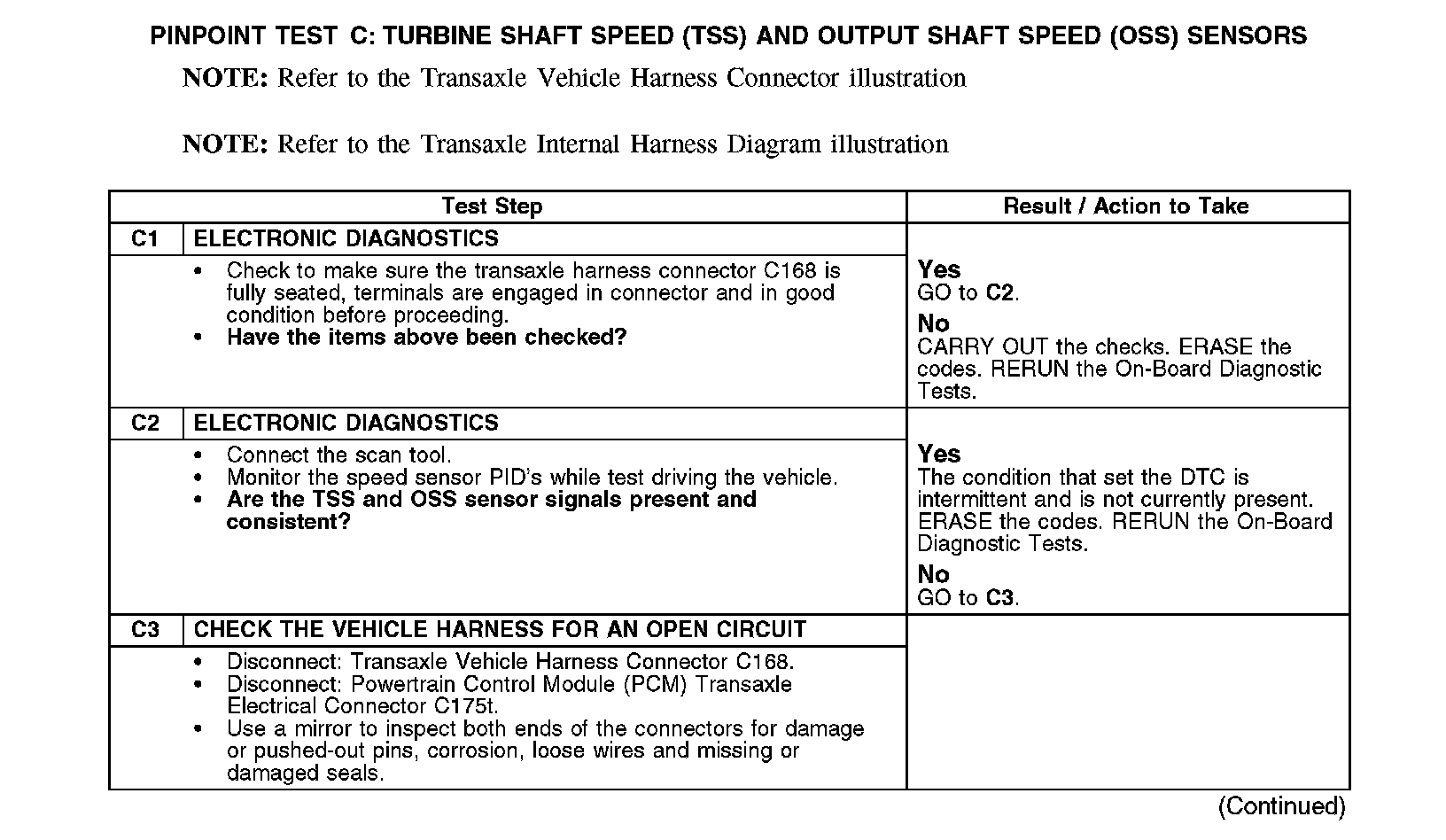

C1-C3:

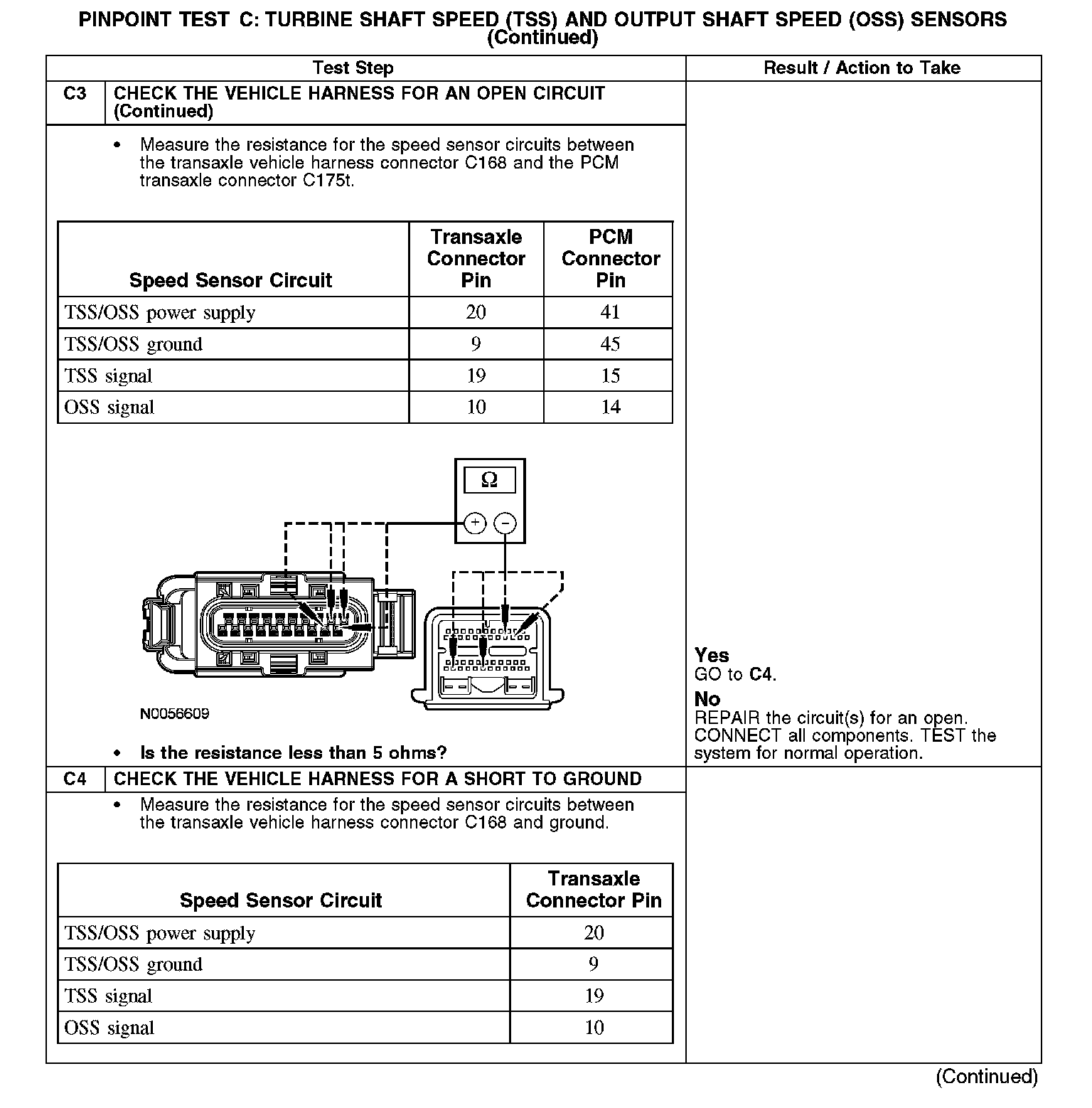

C3-C4:

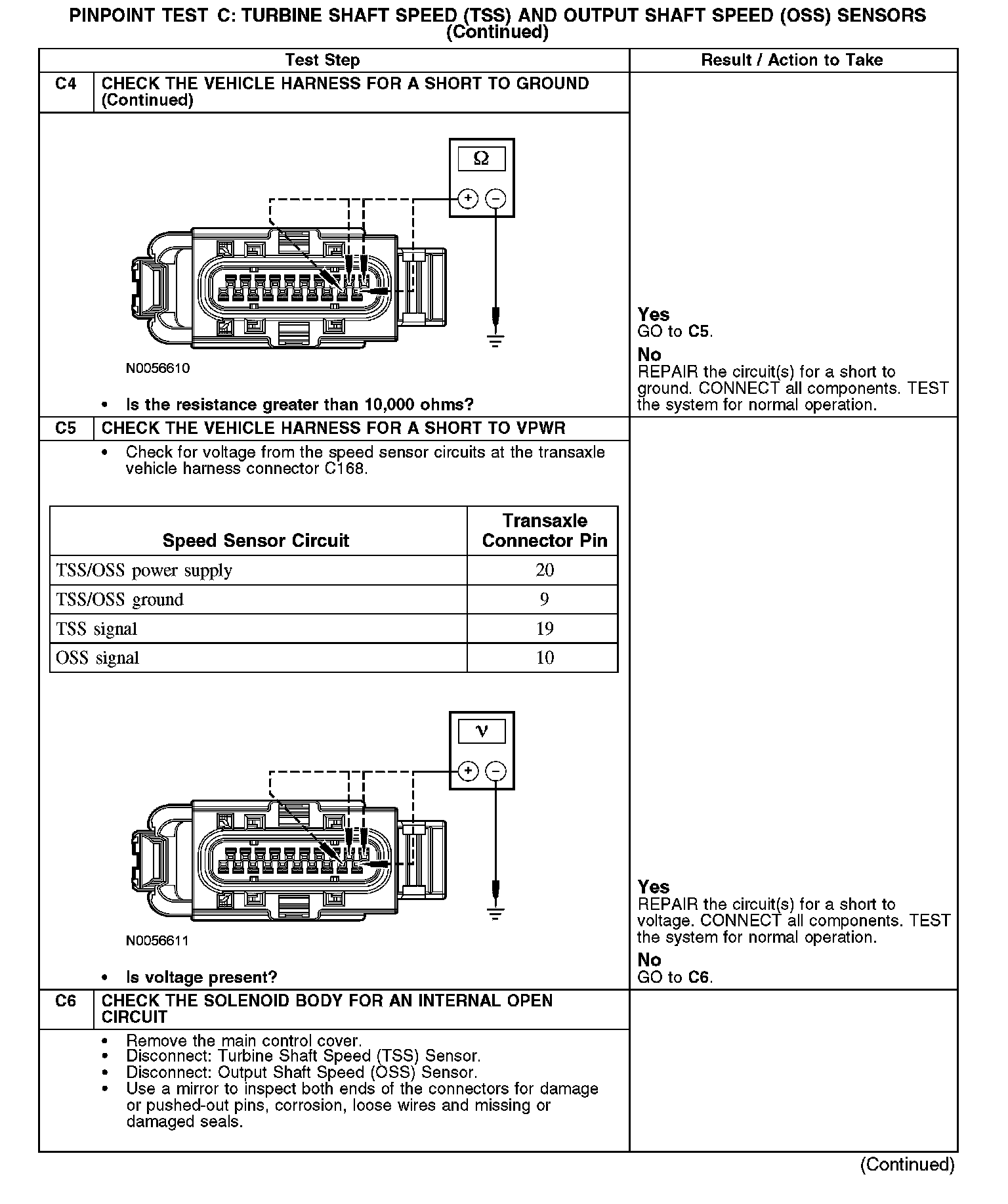

C4-C6:

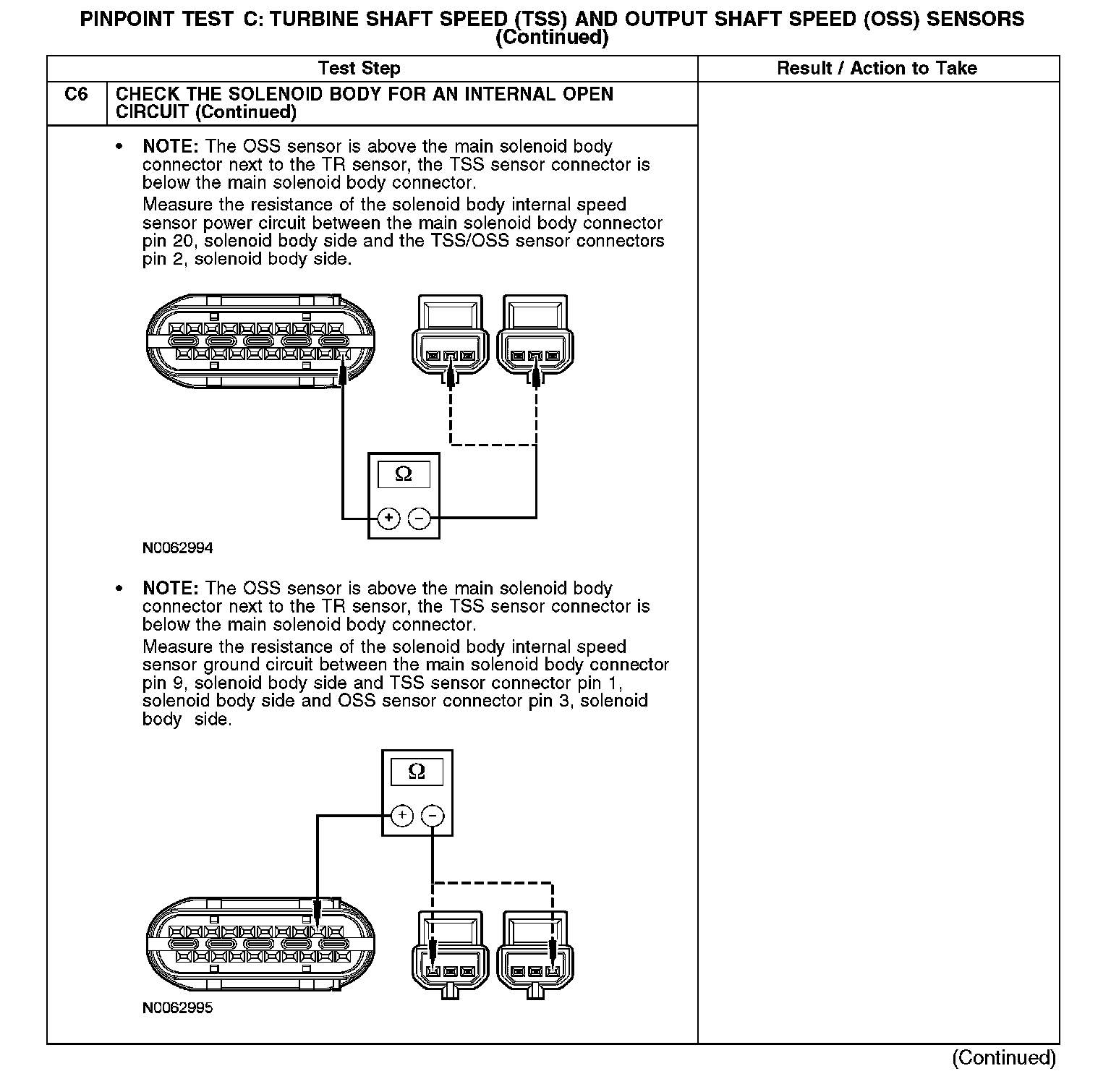

C6:

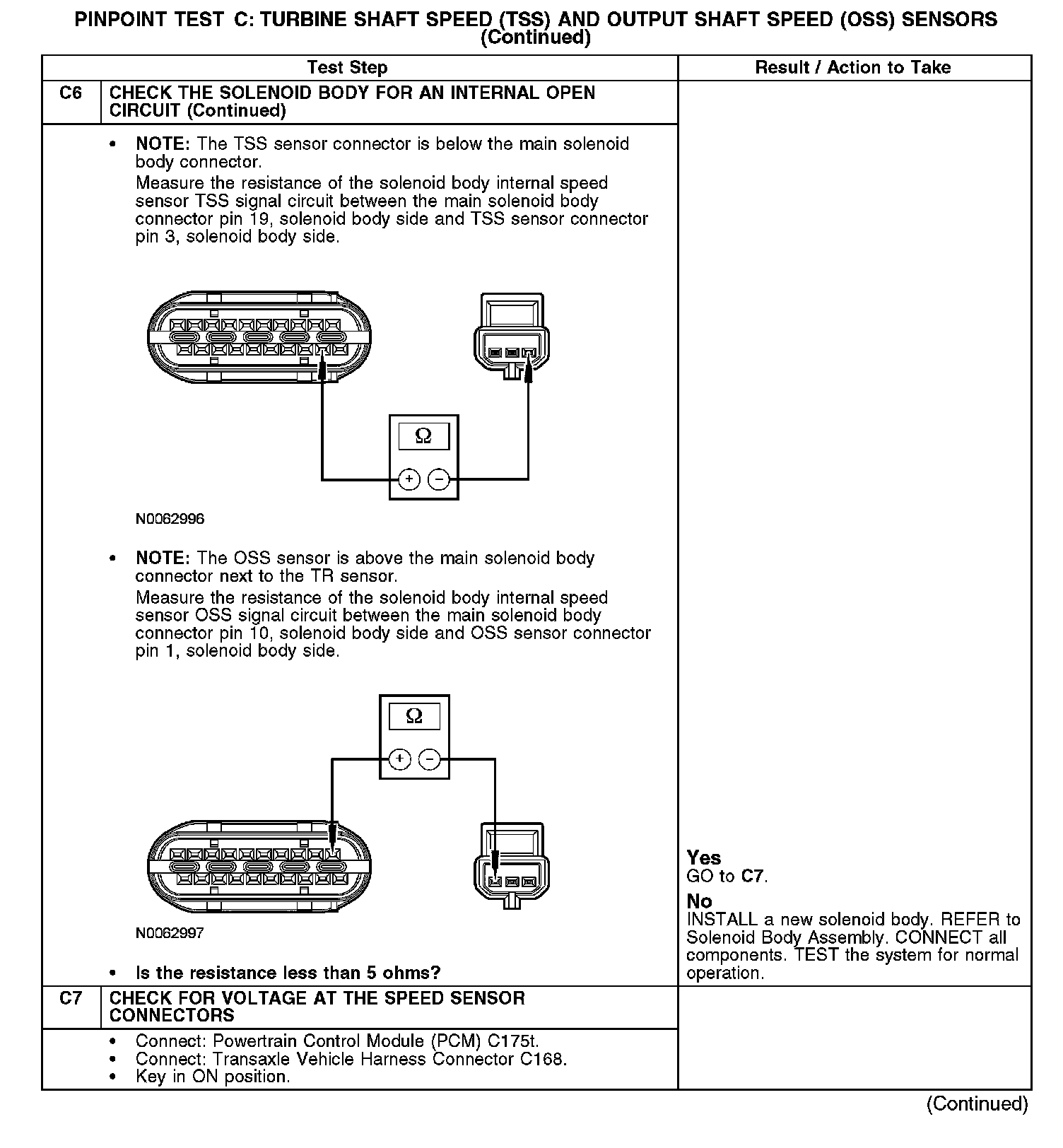

C6-C7:

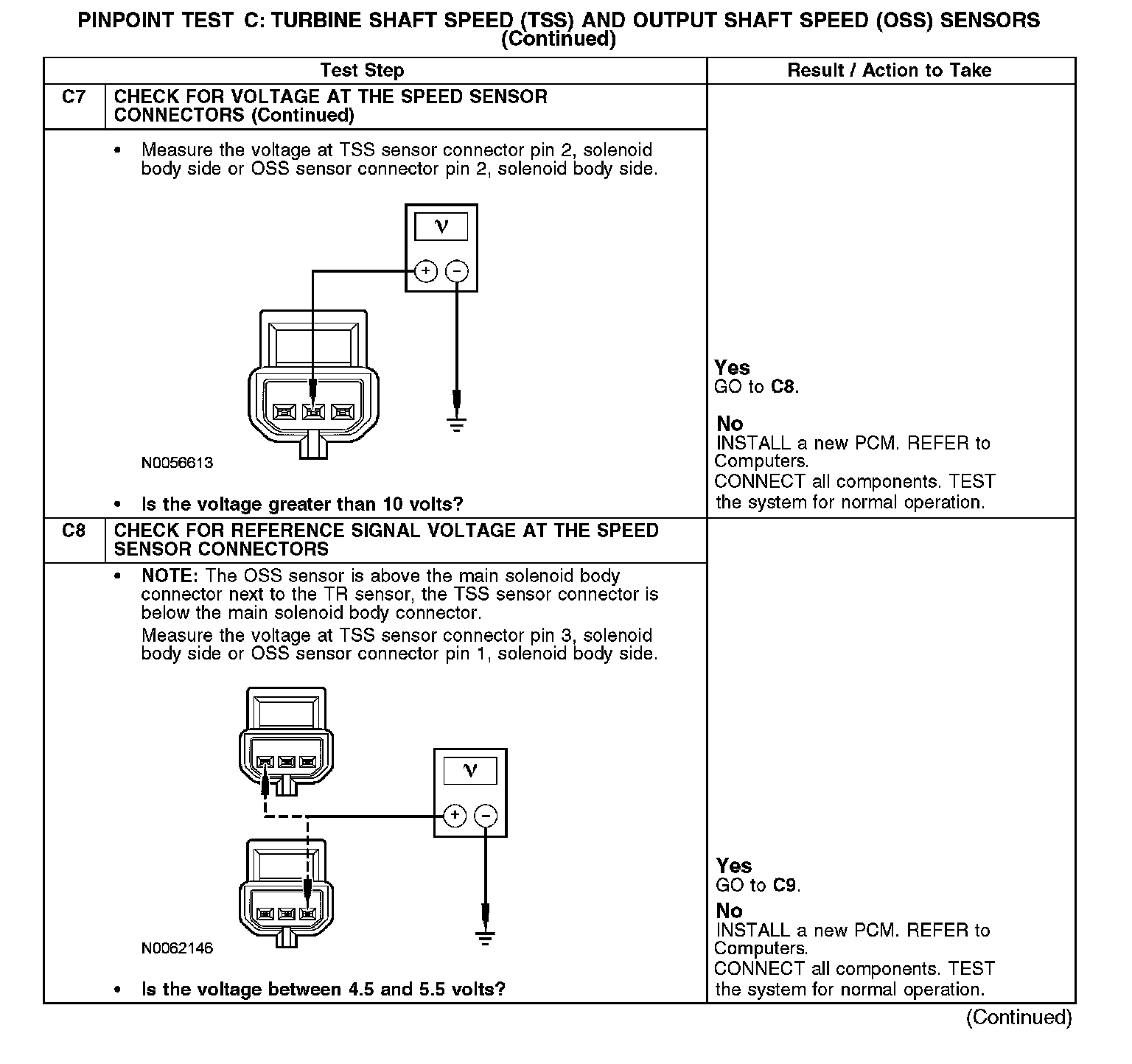

C7-C8:

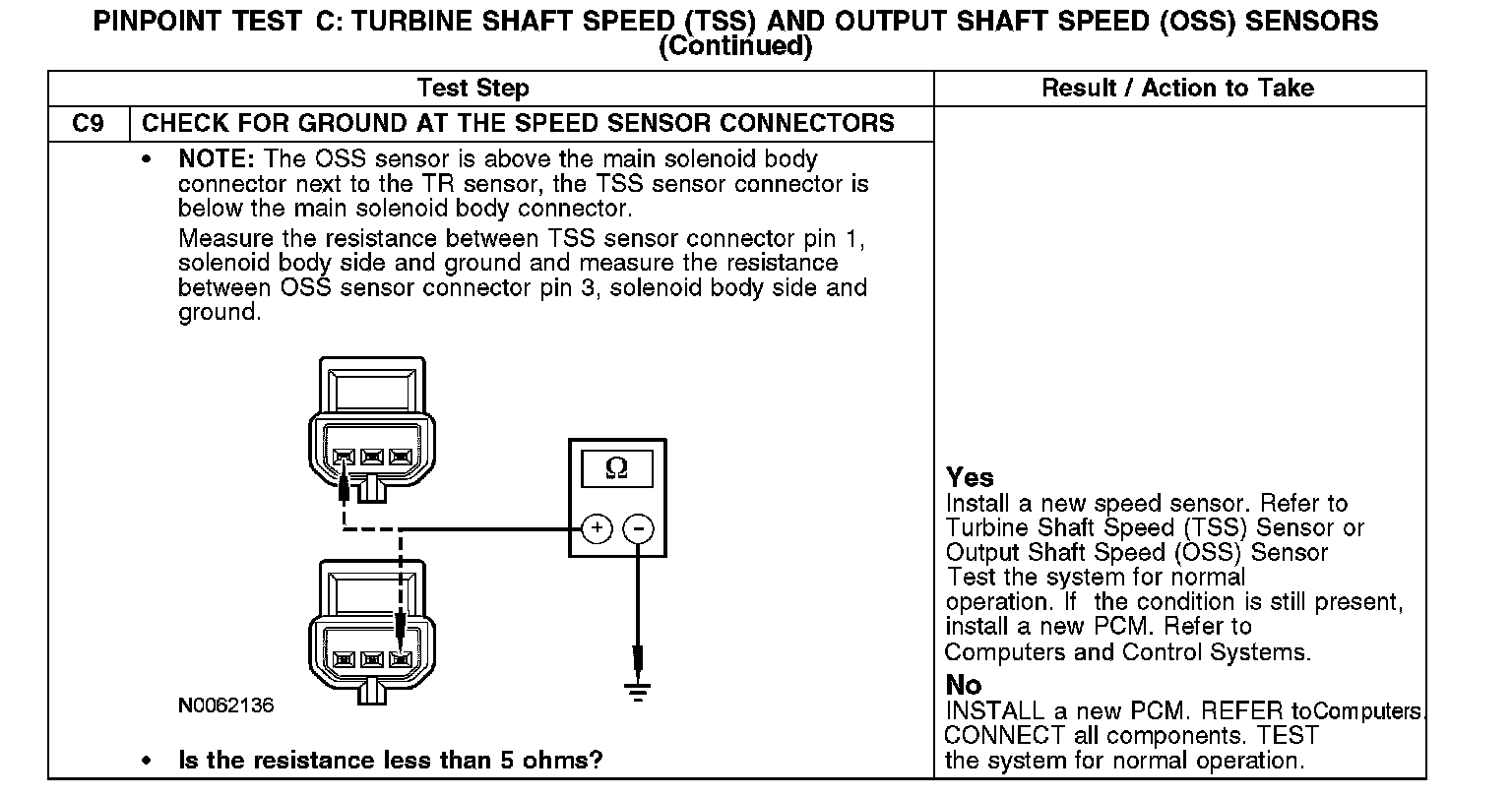

C9:
