Blower Motor Switch

BLOWER MOTOR SWITCH

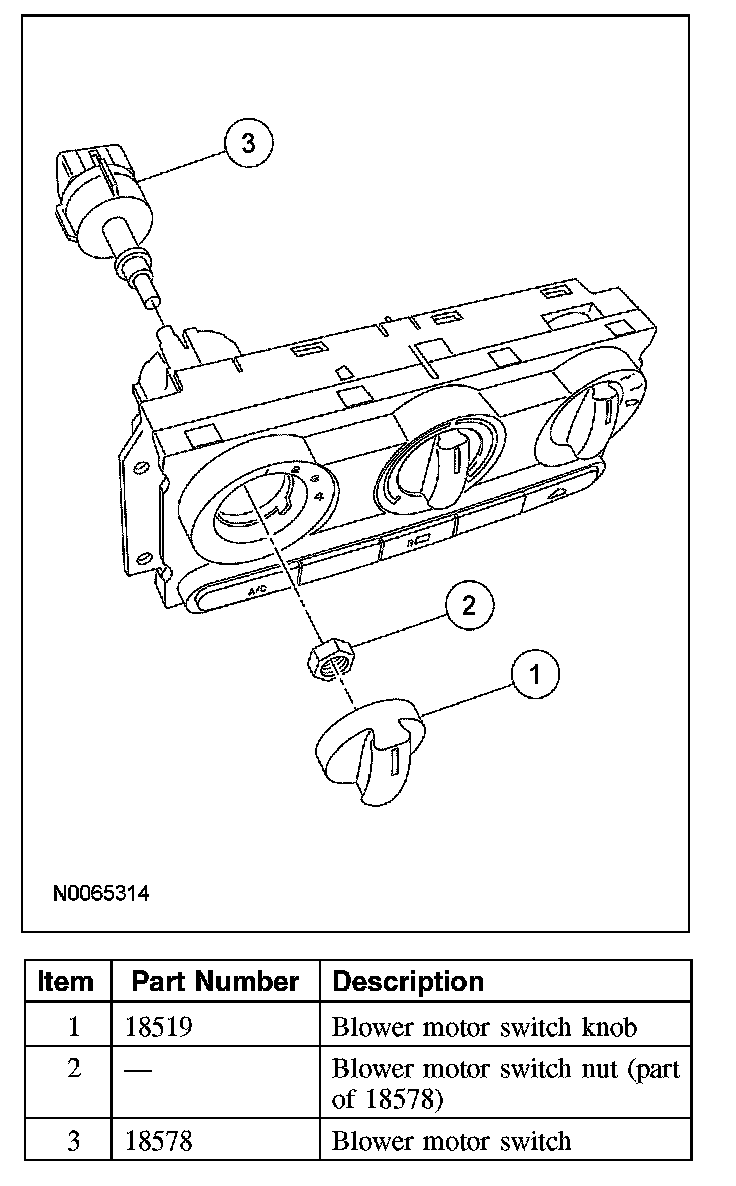

Removal and Installation
1. Remove the climate control module.
2. Pull to remove the blower motor switch knob.







3. Remove the blower motor switch nut.







4. Release the 2 retaining tabs with the index finger on each hand, while depressing the blower motor switch shaft with the thumbs to remove the blower motor switch.
5. To install, reverse the removal procedure.
