Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

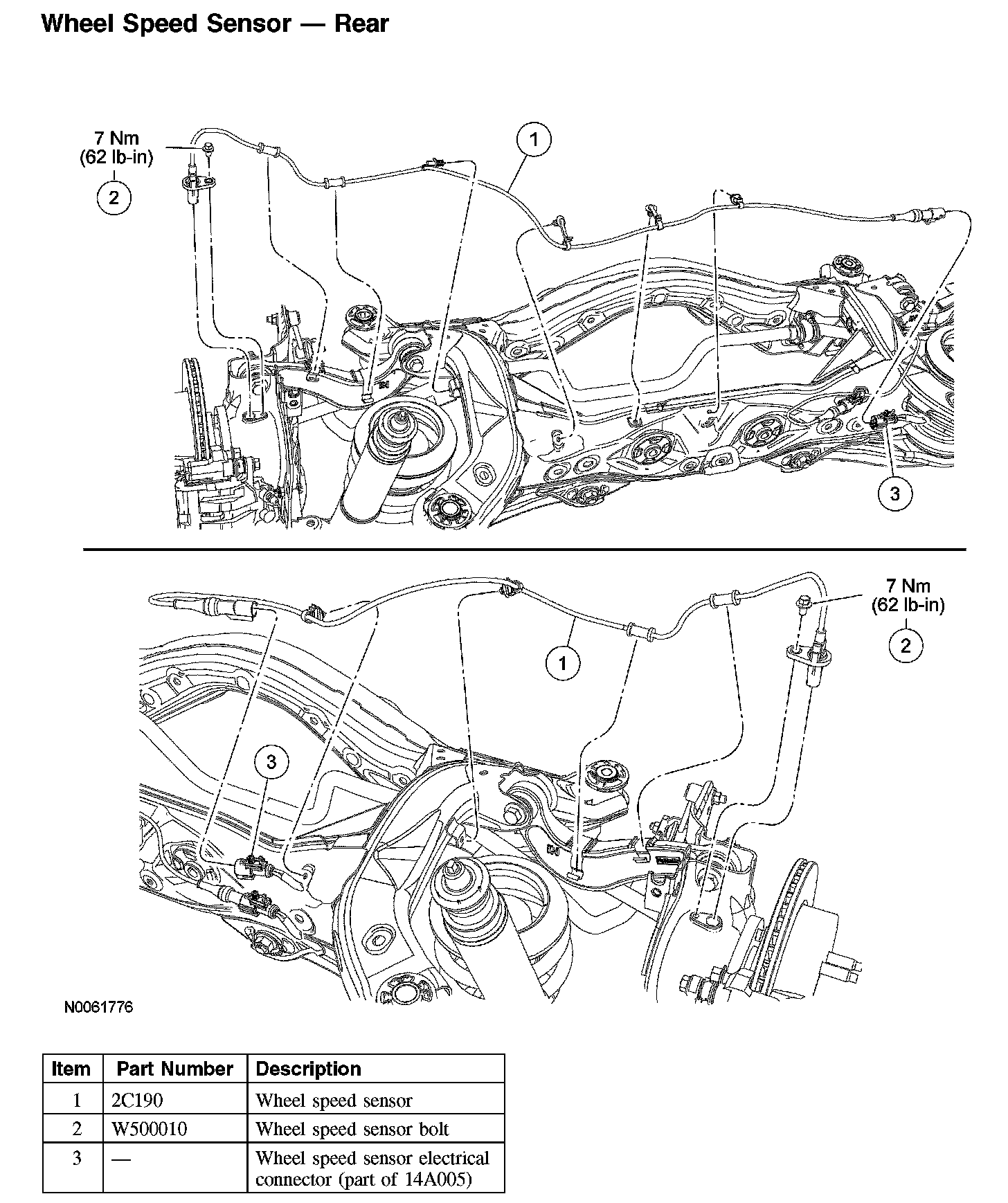

Wheel Speed Sensor - Rear:

Removal and Installation
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the wheel and tire assembly.
3. Disconnect the wheel speed sensor electrical connector.

4. NOTE: It is not necessary to remove the harness routing brackets.

Disconnect the wheel speed sensor harness from the brackets.
5. Disconnect the pushpin fasteners.
6. Remove the wheel speed sensor bolt and the wheel speed sensor.
^ To install, tighten to 7 Nm (62 inch lbs).
7. To install, reverse the removal procedure.
