Test L: No Auxiliary Headphone Audio - THX(R)

PINPOINT TEST L: NO AUXILIARY HEADPHONE AUDIO - THX(R)

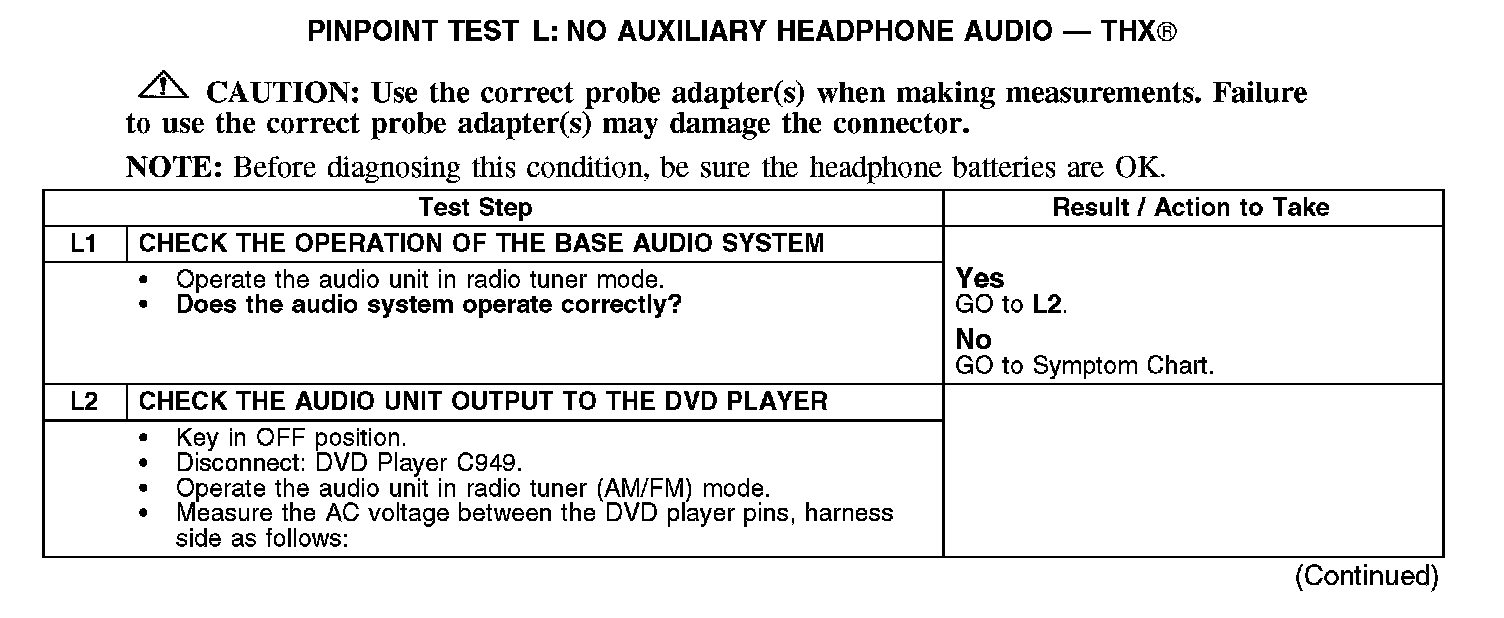

L1-L2:

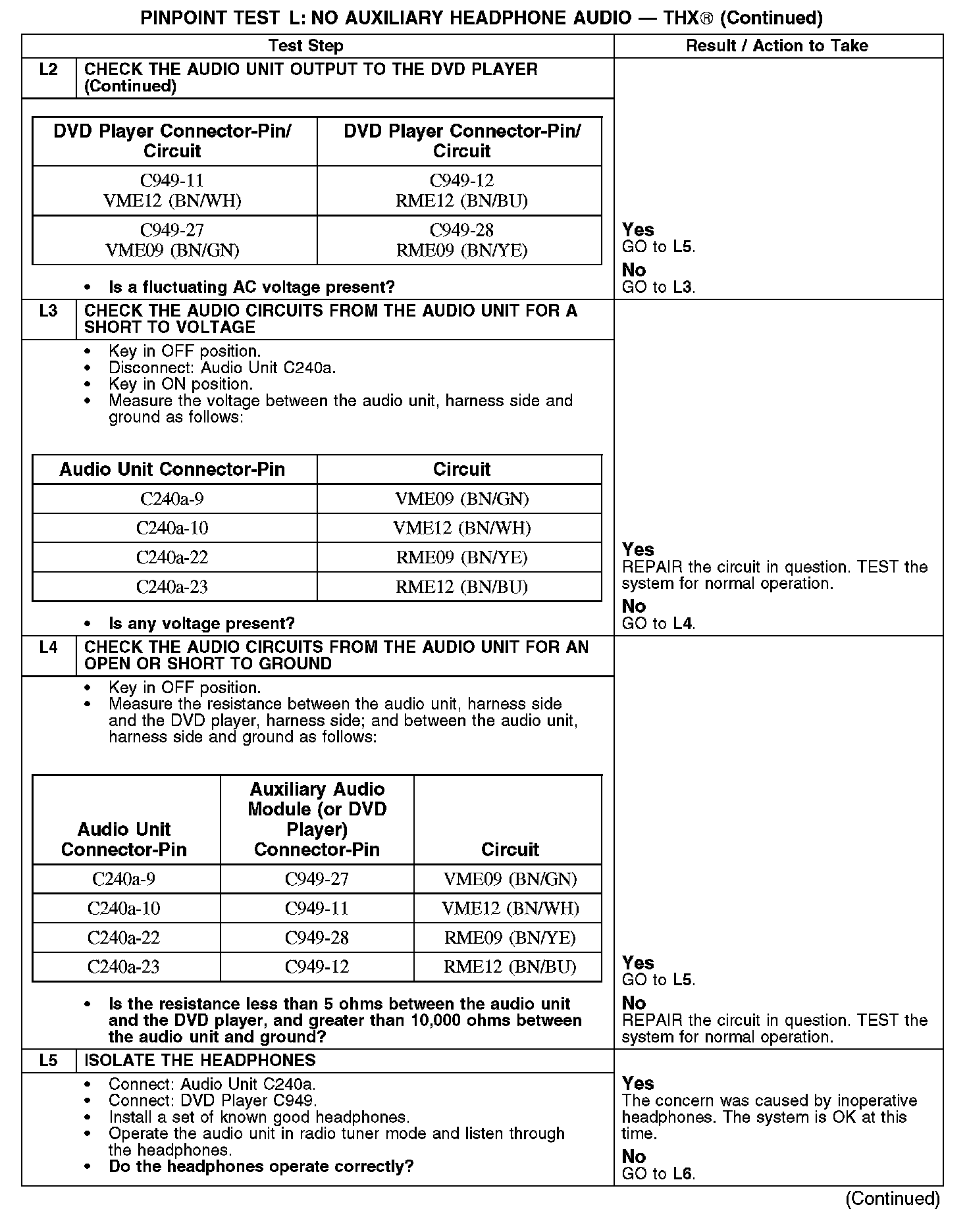

L2-L5:

L6:

Normal Operation
The audio unit receives audio input from the digital versatile disc (DVD) player. The audio signals are then routed to the THX(R) amplifier. In single-play mode, the audio unit controls the output to all speakers and the headphones. In dual-play mode, the DVD player controls the headphones.

Possible Causes
- Circuitry
- Headphones
- DVD player
