Amplifier: Service and Repair

AUDIO AMPLIFIER - THX(R)

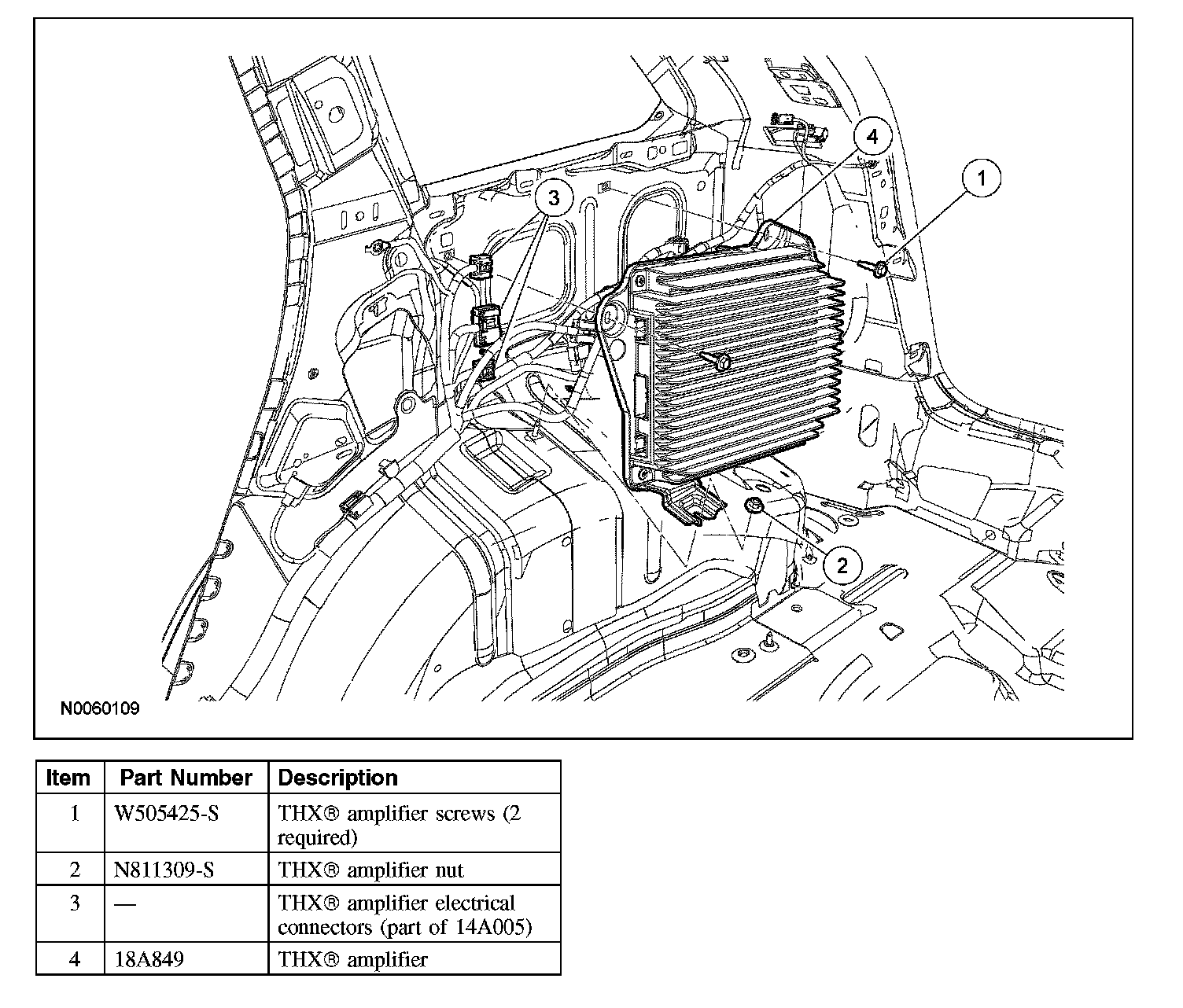

Removal and Installation
1. Remove the subwoofer speaker.
2. Disconnect the THX(R) amplifier electrical connectors.
3. Remove the 2 screws, the nut, and the THX(R) amplifier.
4. To install, reverse the removal procedure.
