Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Actuators and Solenoids - Transmission and Drivetrain >> Actuators and Solenoids - A/T >> Pressure Regulating Solenoid >> Specifications

Pressure Regulating Solenoid: Specifications

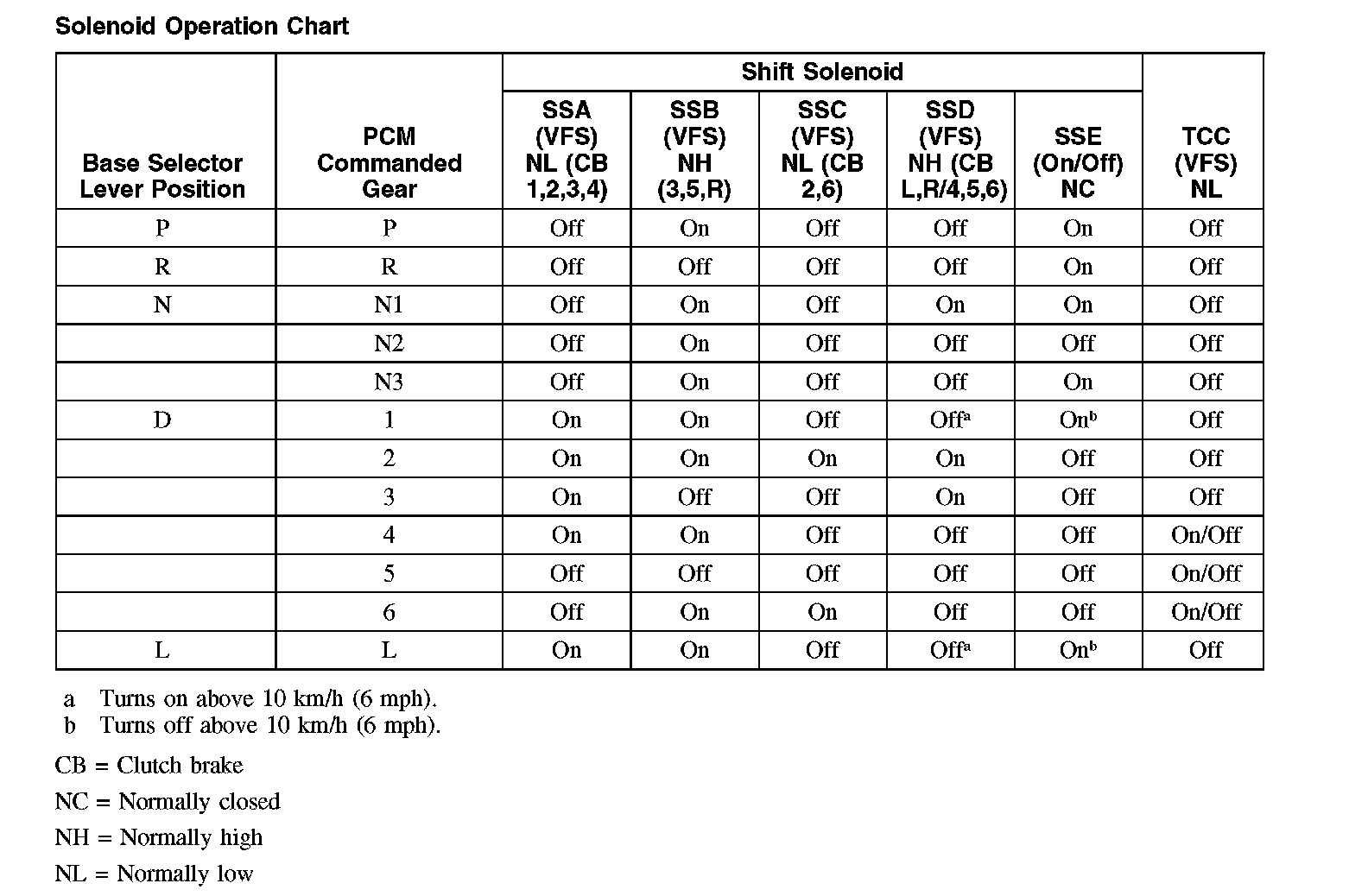

Solenoid Operation Chart

Solenoid Operation Chart:
