Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Ambient Light Sensor >> Locations

Ambient Light Sensor: Locations

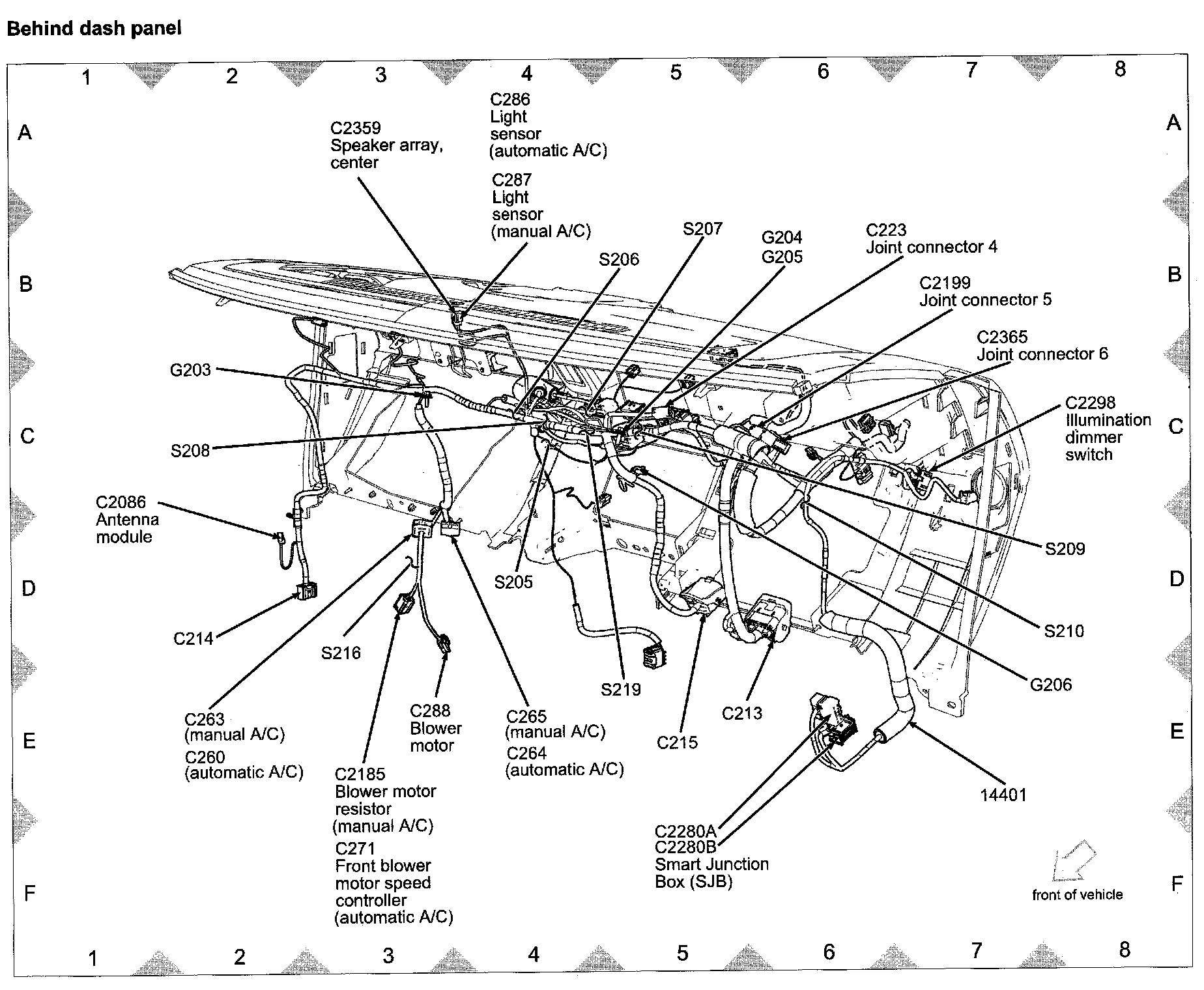

View 151-8 (behind Dash Panel):
