Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

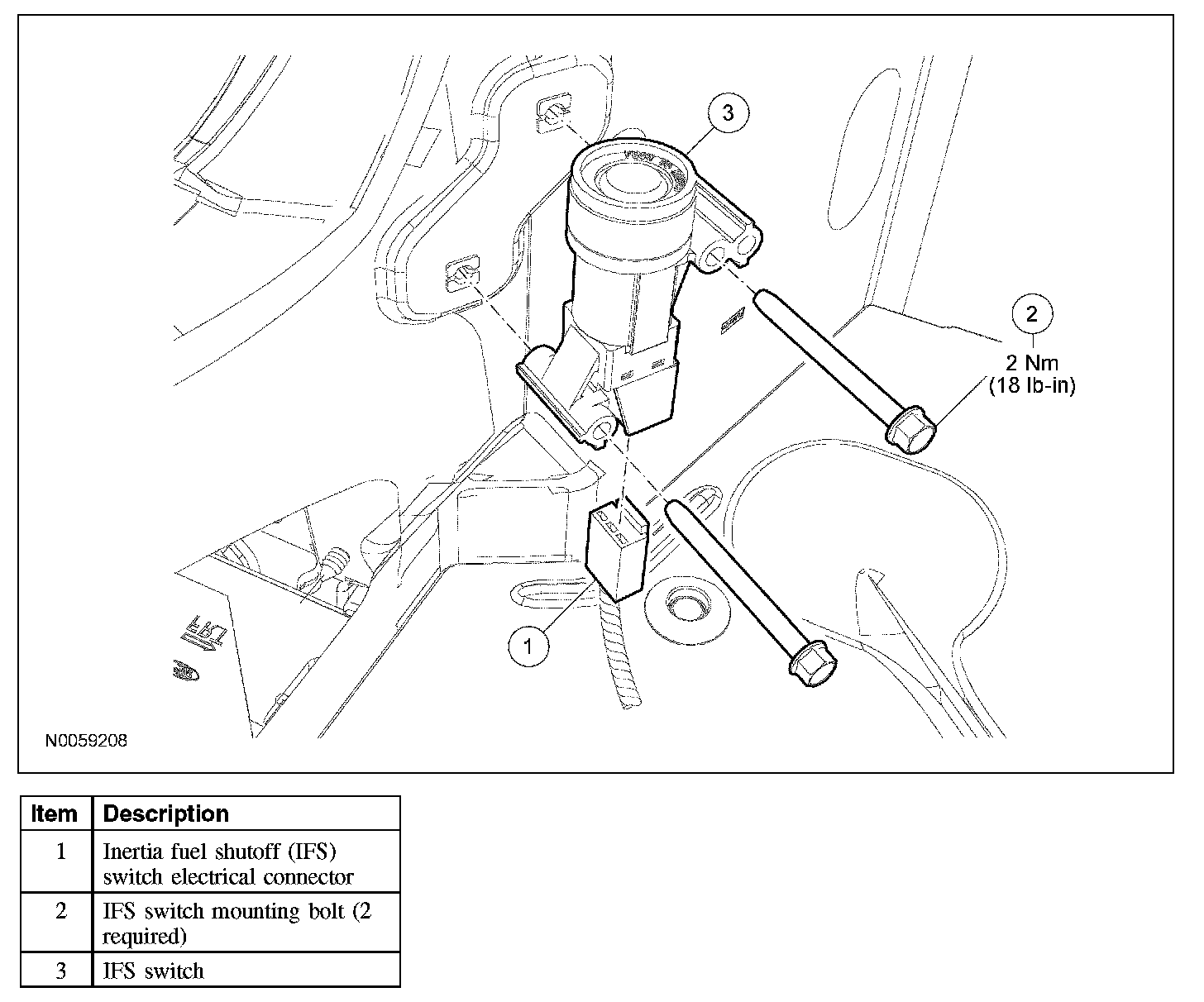

Removal and Installation
1. Remove the LH rear quarter trim panel.
2. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.
3. Remove the 2 bolts and the IFS switch.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
