Parking Assist Distance Sensor: Service and Repair

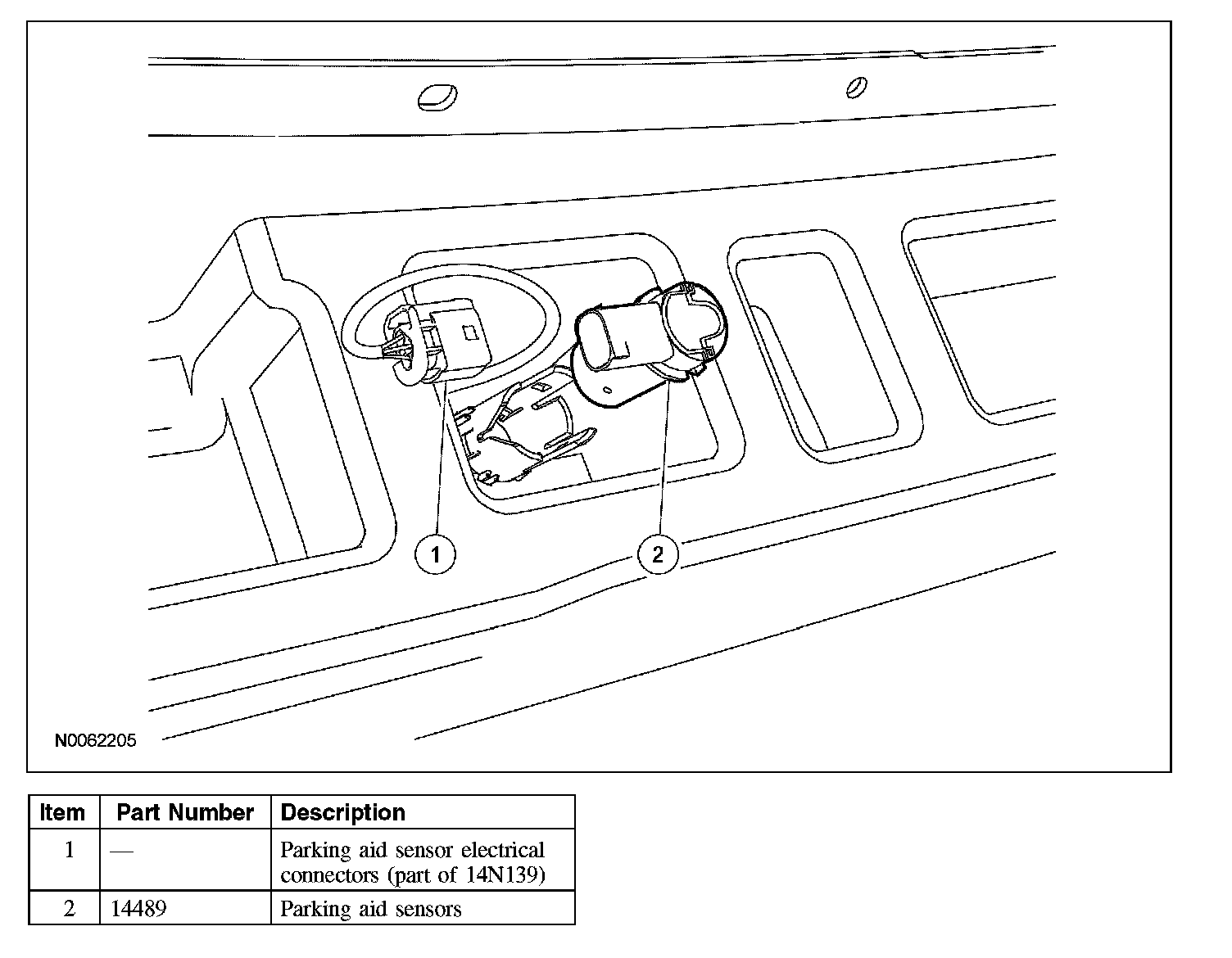

PARKING AID SENSOR







Removal and Installation
1. Remove the rear bumper cover.
2. Disconnect the parking aid sensor(s) electrical connector(s).
3. Press the retaining tabs and remove the parking aid sensor(s).
4. To install, reverse the removal procedure.
