Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Parking Assist Distance Sensor >> Locations

Parking Assist Distance Sensor: Locations

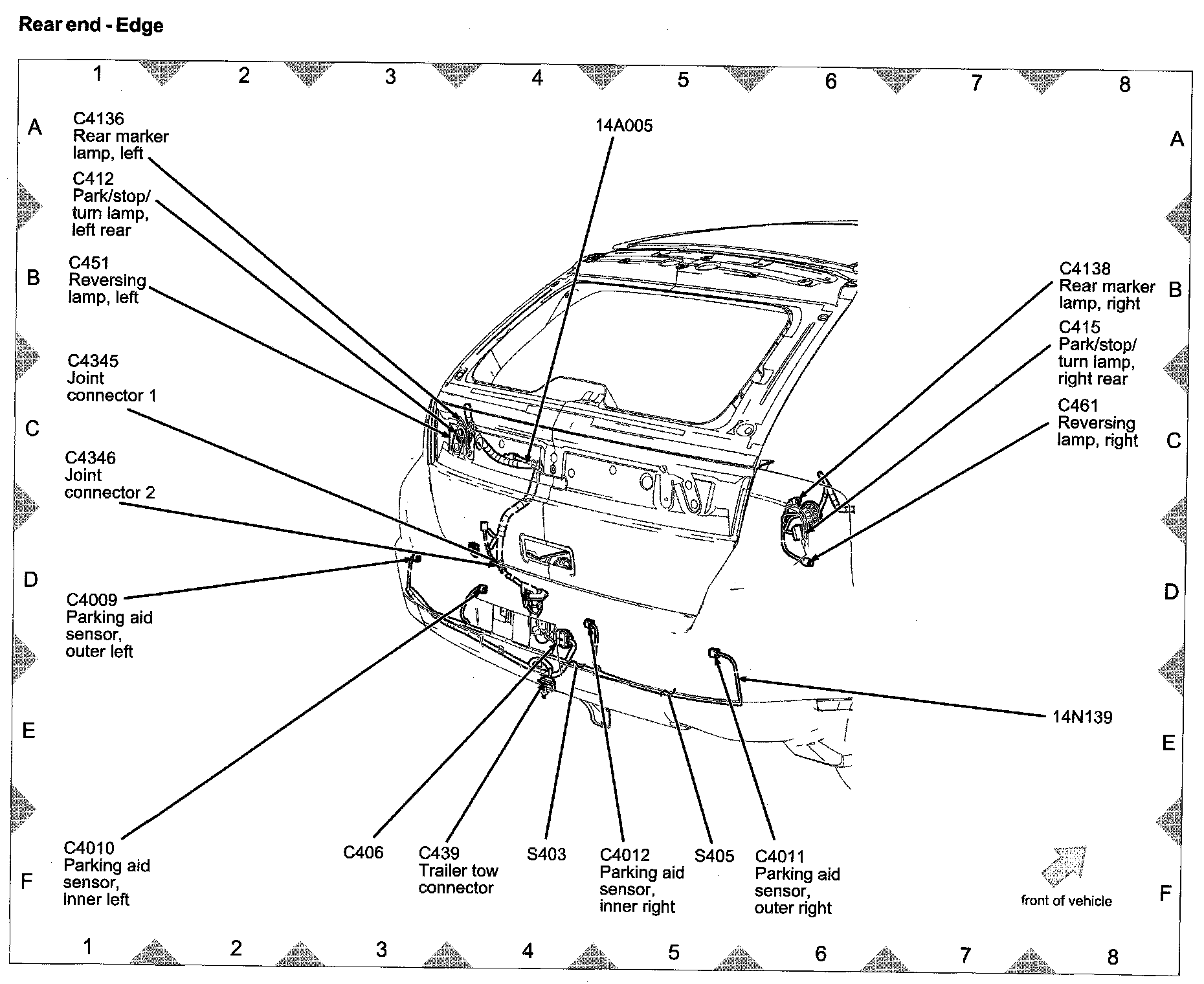

View 151-16 (Rear End - Edge):
