Antenna Cable - Satellite Radio

ANTENNA CABLE - SATELLITE RADIO







Removal and Installation
1. Remove the LH quarter trim panel.
2. Remove the D-pillar trim panel.
3. Remove the liftgate scuff plate trim panel.

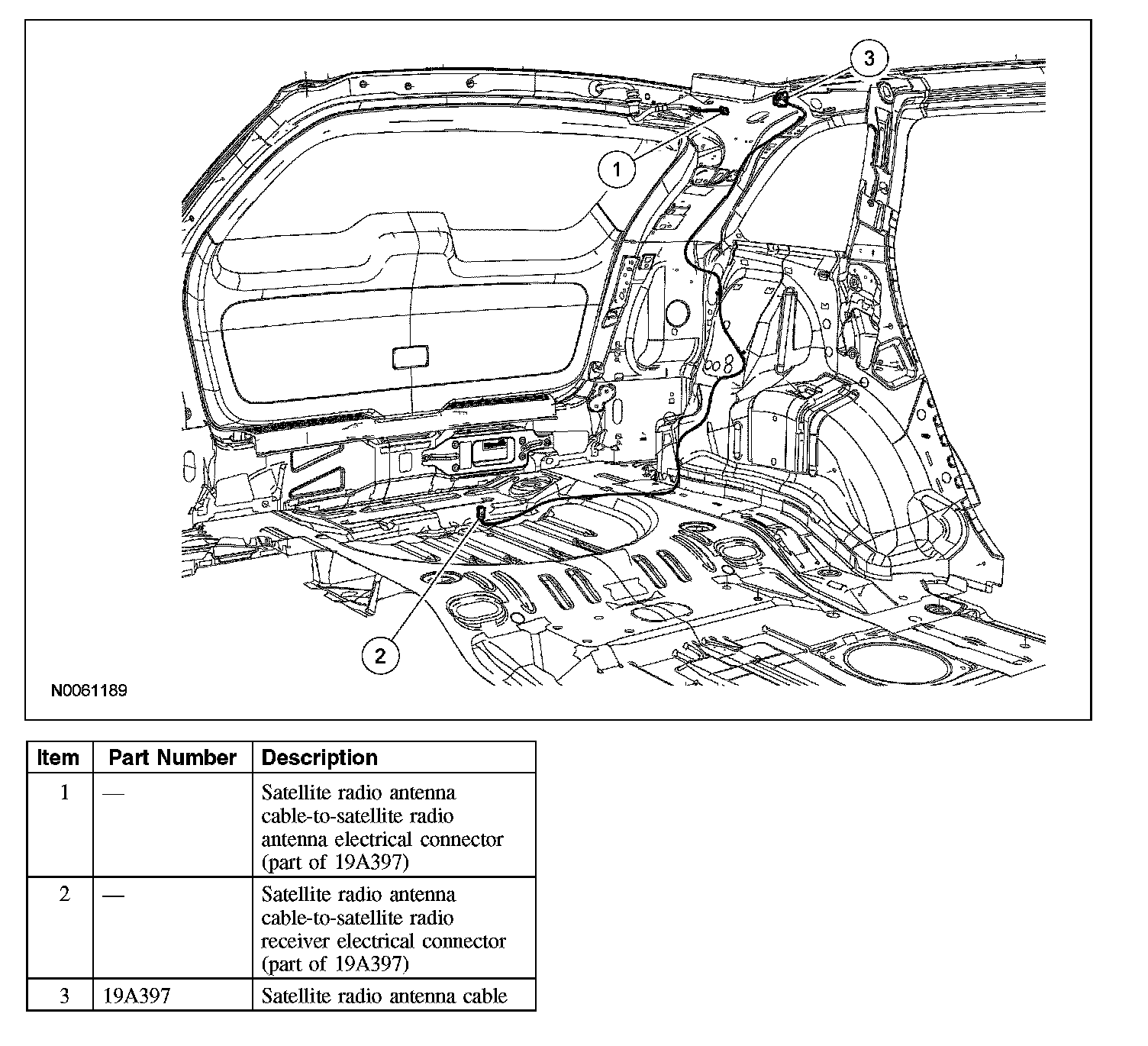

4. Disconnect the satellite radio antenna cable from the satellite radio receiver.
5. Disconnect the satellite radio antenna cable from the satellite radio antenna, and remove the cable.
6. To install, reverse the removal procedure.
