Antenna Cable - AM/FM

ANTENNA CABLE - AM/FM

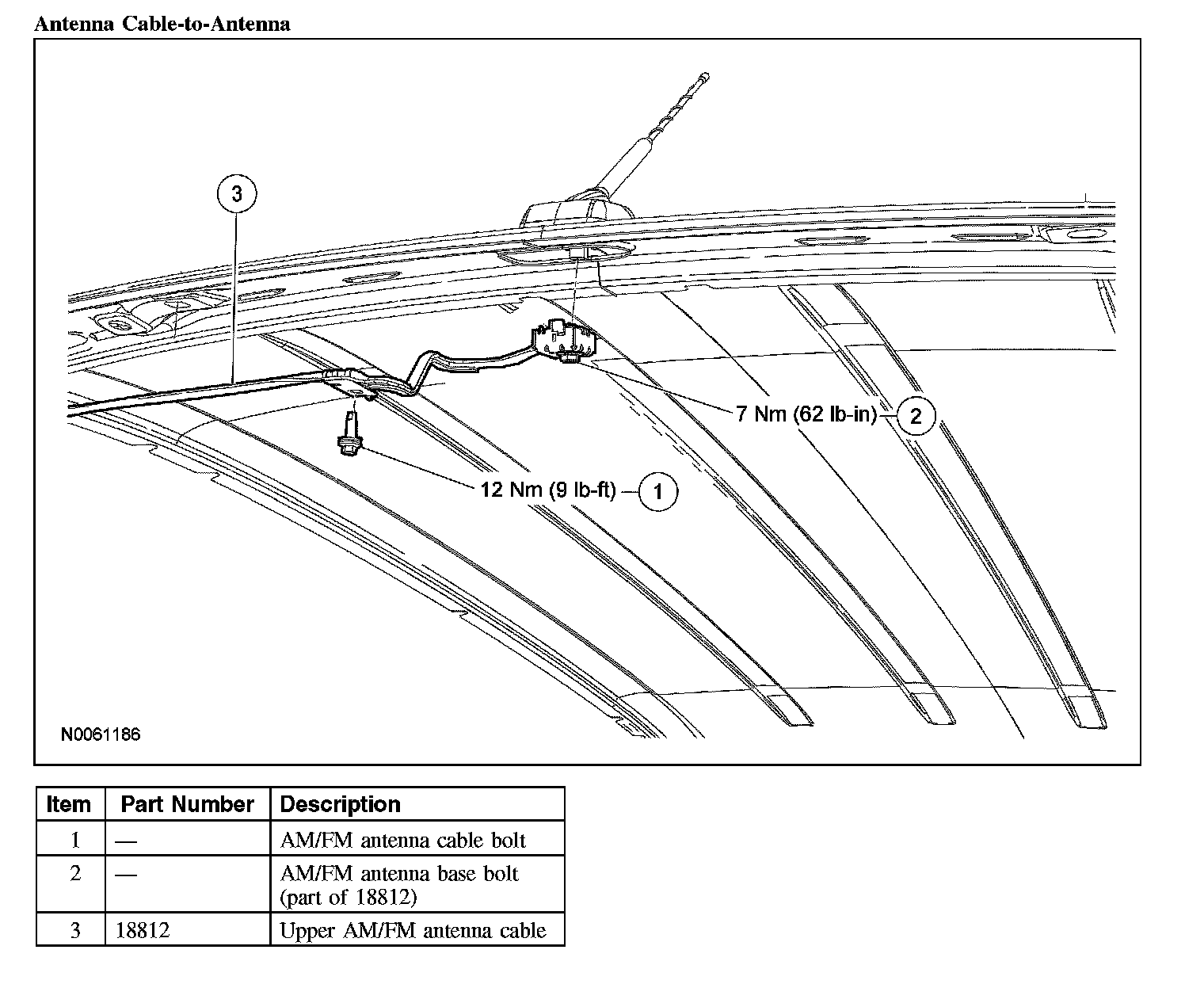

Antenna Cable-to-antenna:

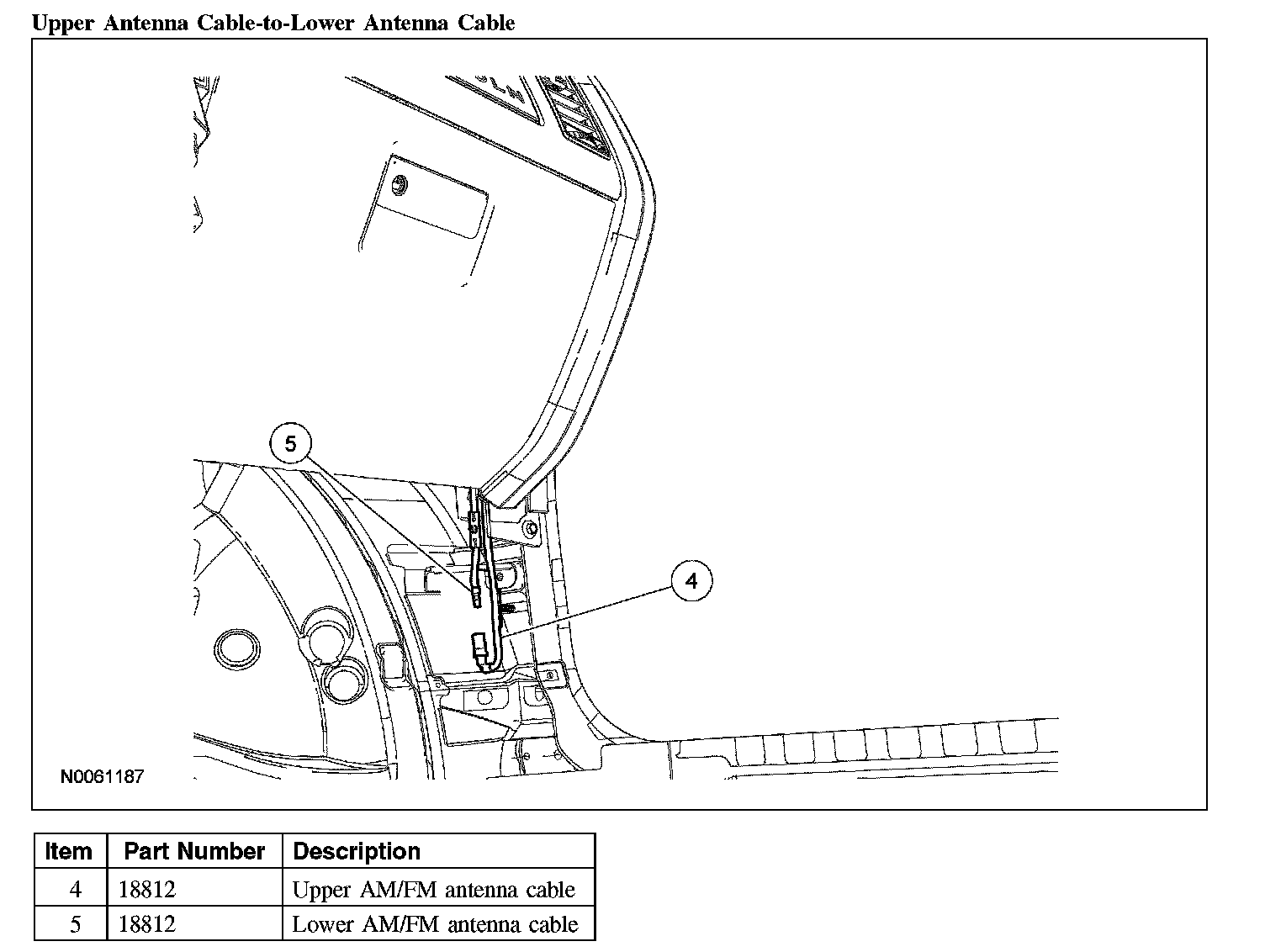

Upper Antenna Cable-to-Lower Antenna Cable:

Removal and Installation

NOTE: Not all steps need to be carried out if only the upper or lower antenna cable is being removed.

1. Remove the audio unit.
2. Lower the glove compartment completely.
3. Remove the RH cowl side trim panel.
4. Remove the RH A-pillar trim panel.
5. Remove the dome lamp.
6. Loosen the AM/FM antenna base bolt and disconnect the antenna cable from the antenna.
- To install, tighten to 7 Nm (62 lb-in).

7. Remove the RH sun visor.

8. NOTE: Lower the headliner, as necessary.

Remove the AM/FM antenna cable bolt and the antenna cable.
- Disconnect the upper antenna cable from the lower antenna cable.
- To install, tighten the bolt to 12 Nm (9 lb-ft).

9. To install, reverse the removal procedure.
