Engine Support Insulators: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G03920155
 Engine Support Bar, Heavy Duty 303-F070
G03920073
 Support Hook 303-F071
G03920056
 Engine Support Bracket 303-639

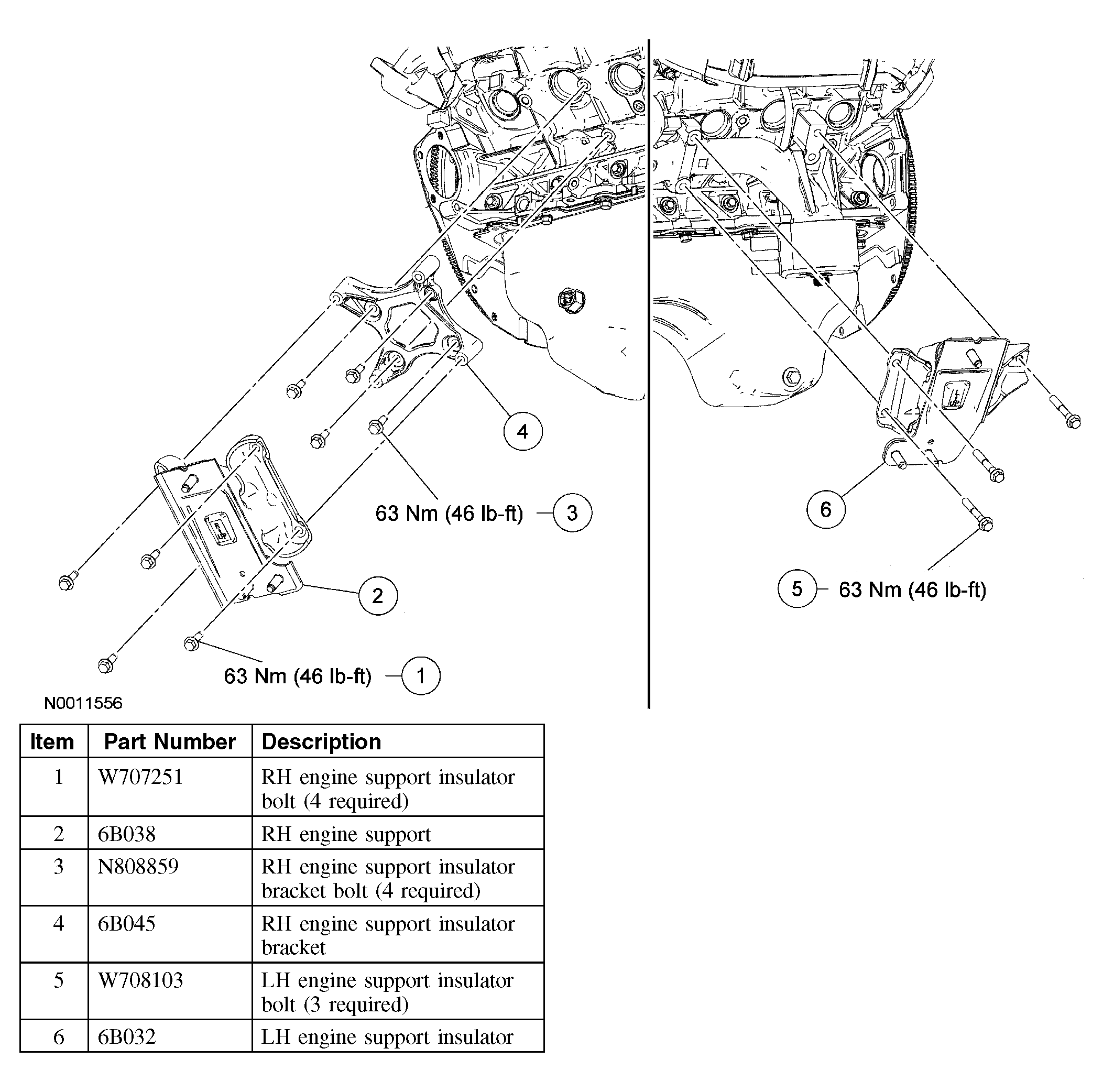

Fig 1: Exploded View Of Engine Support Insulators
G03920158Courtesy of FORD MOTOR CO.
