Removal and Installation

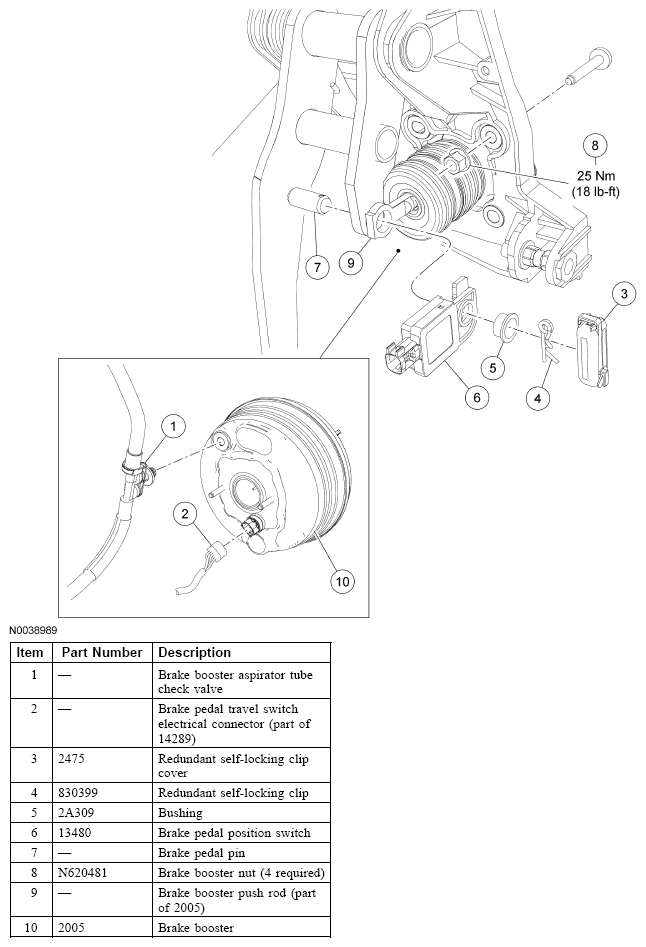

Fig 1: Exploded View Of Brake Booster

Courtesy of FORD MOTOR CO.

Remove the brake master cylinder. For additional information, refer to HYDRAULIC BRAKE ACTUATION .
Disconnect the speed control and the accelerator cables from the throttle body.

Fig 2: Locating Speed Control And Accelerator Cables
Courtesy of FORD MOTOR CO.
Disconnect the wiring harness retaining bracket from the throttle body.
Remove the accelerator cable bracket nut and bolt and position the speed control and the accelerator cable bracket aside.
- To install, tighten to 15 Nm (11 lb-ft).

  Fig 3: Locating Accelerator Cable Bracket Nut And Bolt
  Courtesy of FORD MOTOR CO.
Remove the 2 bolts from the speed control actuator.
- To install, tighten to 10 Nm (89 lb-in).

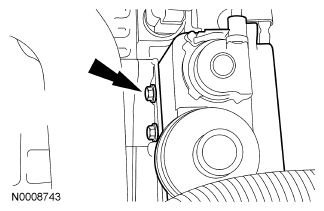

  Fig 4: Locating Speed Control Actuator Bolts
  Courtesy of FORD MOTOR CO.
Disconnect the brake booster aspirator tube check valve from the brake booster.
Remove the redundant self-locking clip cover and the self-locking clip from the brake pedal.
Remove the brake pedal position switch, booster rod and bushing from the brake pedal.
Remove the 4 brake booster nuts.
- To install, tighten to 25 Nm (18 lb-ft).
Remove the brake booster from the vehicle.
To install, reverse the removal procedure.
