Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the pushpin retainer, injection control pressure (ICP) electrical connector and glow plug connectors.

Fig 1: Locating Injection Control Pressure (ICP) Electrical Connector And Glow Plug Connectors
Courtesy of FORD MOTOR CO.
Remove the 2 nuts and the glow plug relay.
- Tighten to 8 Nm (71 lb-in).

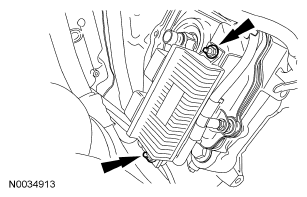

  Fig 2: Locating Glow Plug Relay Nuts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
