Halfshaft Seal - LH: Removal

  1. Remove the halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  2. Using the special tools, remove the halfshaft oil seal.

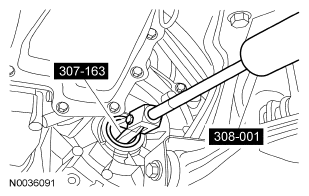

    Fig 1: Removing Halfshaft Oil Seal
    G04653318Courtesy of FORD MOTOR CO.
