Home >> Ford >> 2006 >> Focus ZX5 SE, Standard >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension System >> Removal And Installation >> Wheel Spindle >> Notes

Wheel Spindle: Notes

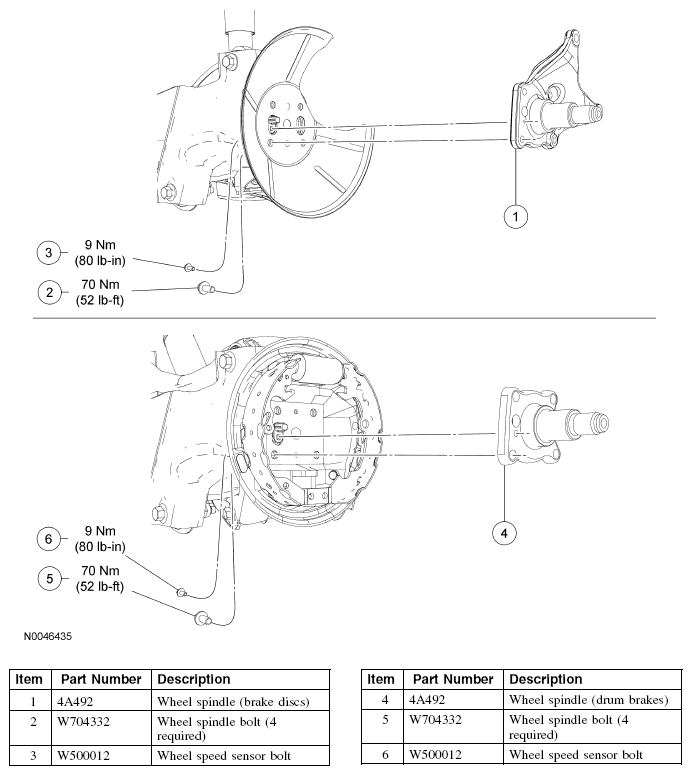

Fig 1: Wheel Spindle Replacement Components With Torque Specifications

G04651504

Courtesy of FORD MOTOR CO.
