Wheel Knuckle: Notes

Brake Discs

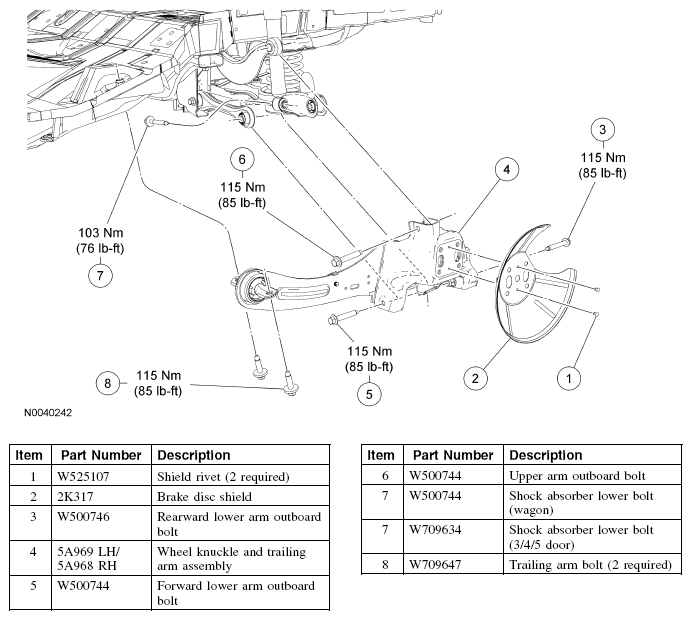

Fig 1: Wheel Knuckle - Brake Discs Replacement Components With Torque Specifications
G04651497Courtesy of FORD MOTOR CO.

Drum Brakes

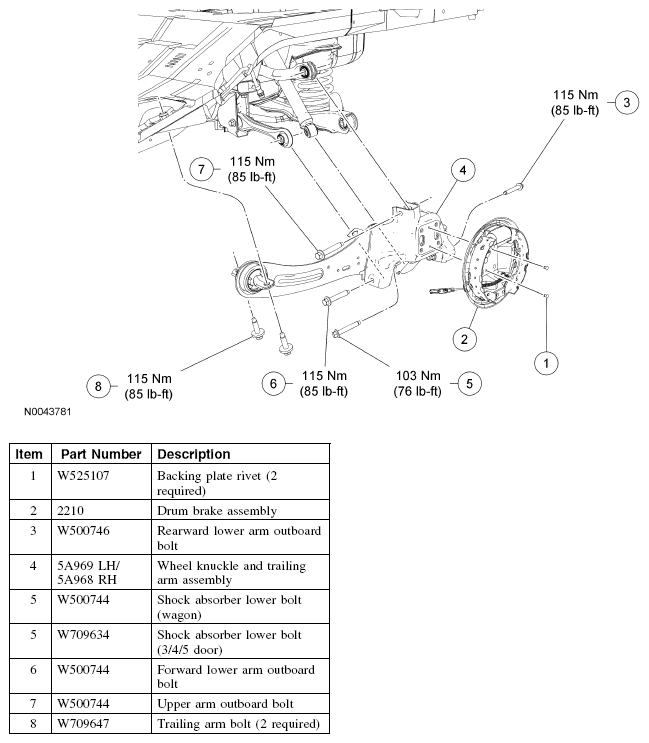

Fig 2: Wheel Knuckle - Drum Brakes Replacement Components With Torque Specifications
G04651498Courtesy of FORD MOTOR CO.
