Notes
Wheel Hub: Notes

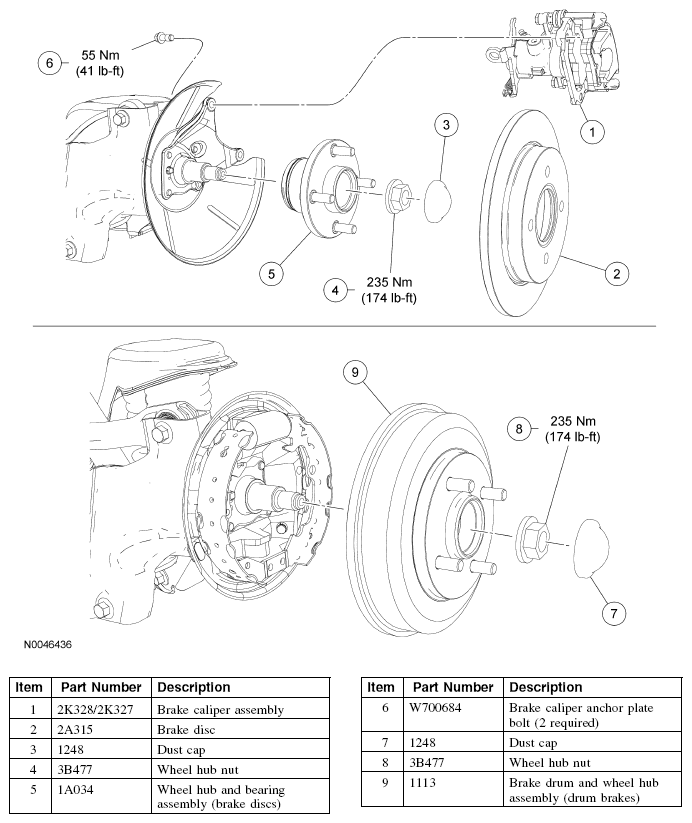

Fig 1: Wheel Hub Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
