Wheel Bearing - Drum Brakes: Notes

SPECIAL TOOL(S)

G04651472Courtesy of FORD MOTOR CO.
 Installer, Water Seal Carrier 204-322
G04651473Courtesy of FORD MOTOR CO.
 Installer, Seal 204-325
G04651474Courtesy of FORD MOTOR CO.
 Adapter for 204-322 (Handle) 205-153 (T80-T4000-W)
G04651475Courtesy of FORD MOTOR CO.
 Installer, PTO Dust Flange 308-432

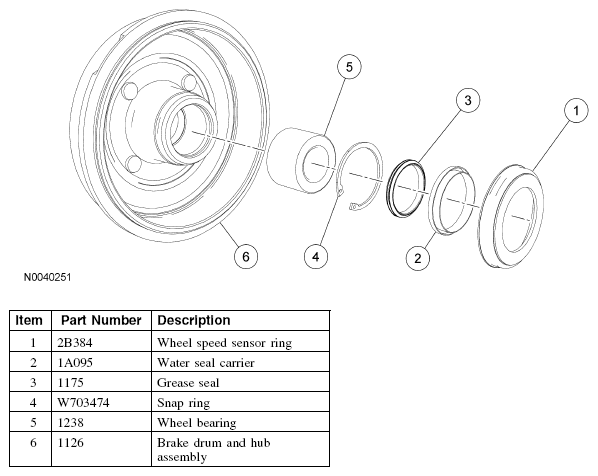

Fig 1: Identifying Wheel Bearing - Drum Brakes Components
G04651476Courtesy of FORD MOTOR CO.
