Wheel Bearing - Disc Brakes: Notes

SPECIAL TOOL(S)

G04651483Courtesy of FORD MOTOR CO.
 Installer, Water Seal Carrier 204-323
G04651484Courtesy of FORD MOTOR CO.
 Adapter for 303-224 (Handle) 205-153 (T80T-4000-W)
G04651485Courtesy of FORD MOTOR CO.
 Installer, PTO Dust Flange 308-432

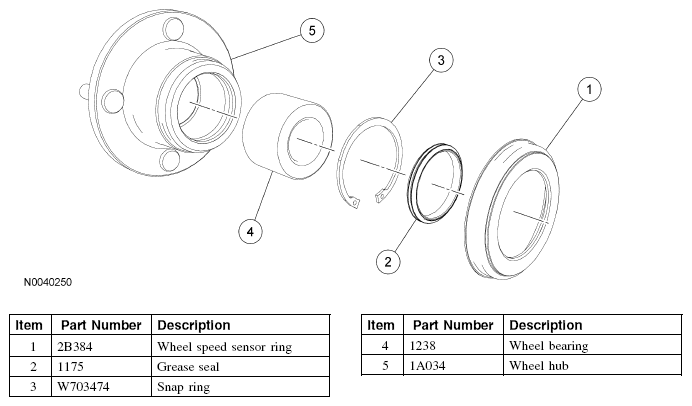

Fig 1: Identifying Wheel Bearing - Disc Brakes Components
G04651486Courtesy of FORD MOTOR CO.
