Notes
Stabilizer Bar: Notes
NOTE:
Wagon shown, 3/4/5 door similar.

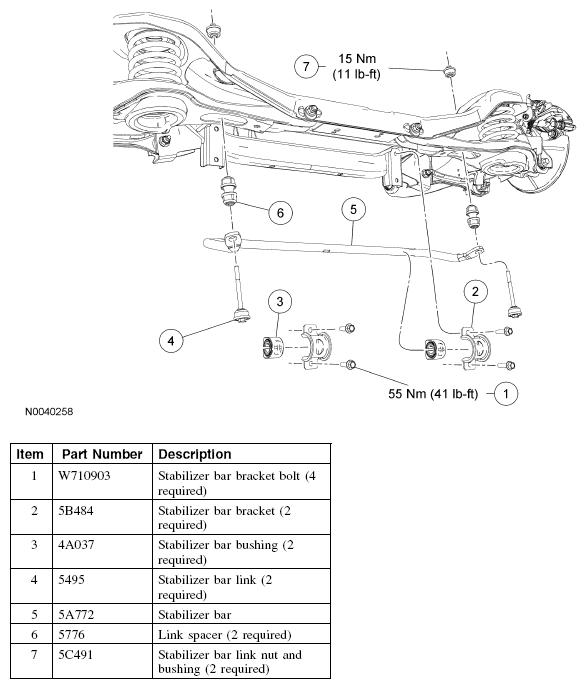

Fig 1: Stabilizer Bar Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
