Removal And Installation: Spring: Notes
NOTE:
3/4/5 door shown, wagon similar.

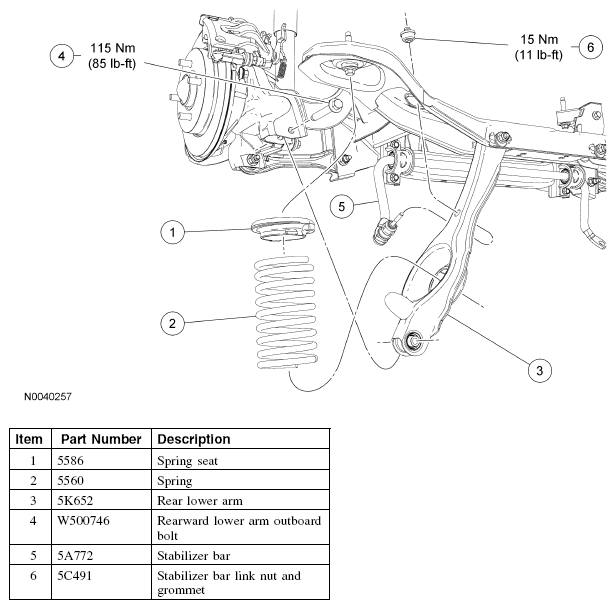

Fig 1: Spring Assembly Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
