Shock Absorber - Wagon: Notes

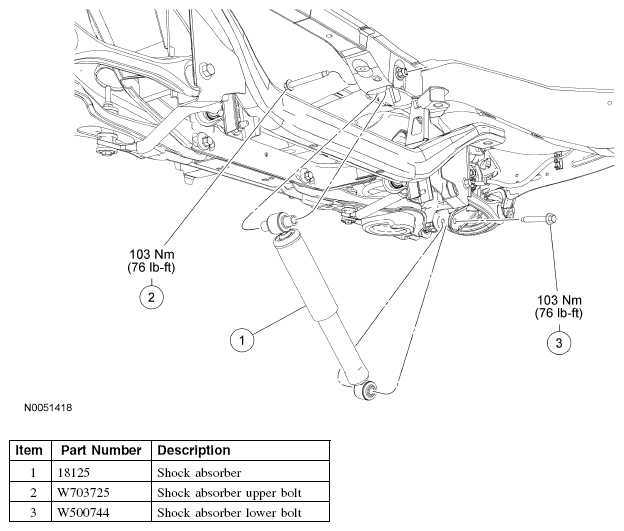

Fig 1: Shock Absorber -- Wagon Replacement Components With Torque Specifications

G04651505

Courtesy of FORD MOTOR CO.
